BOSCAR
Boscar BC-2P7TG 8000kg 15500lbs Heavy Duty Gantry Two Post Car Lift Hydraulic
¥3,200.00Ex-works · freight quoted separately
Need a full bay layout? Send your dimensions and we return a drawing with airflow, power and packing.
Request a quoteOverview

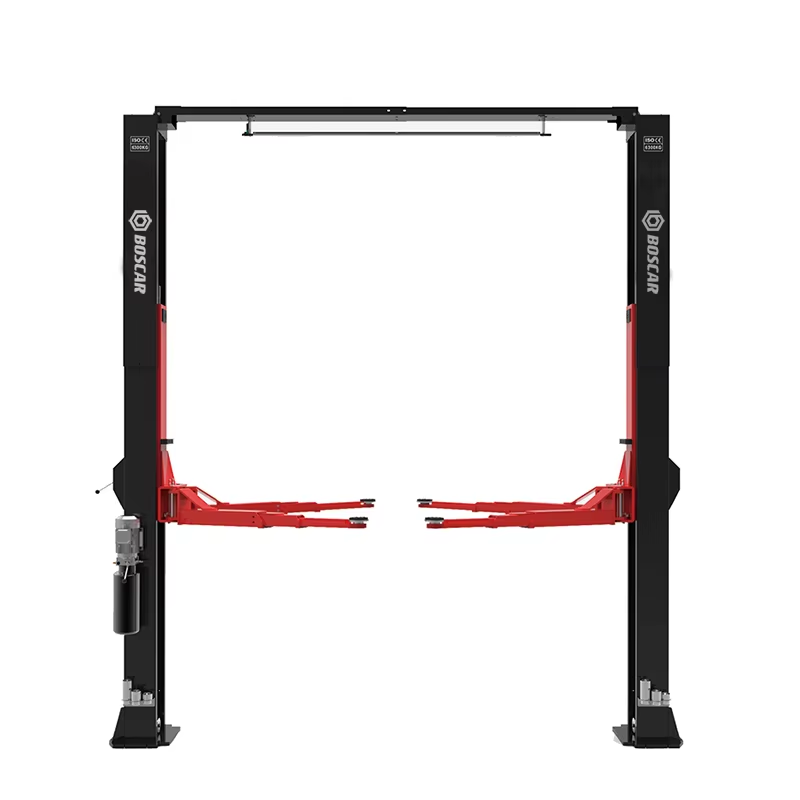

The BOSCAR BC-2P7TG is a heavy-duty gantry two-post hydraulic car lift engineered for commercial workshops, fleet maintenance facilities, and truck repair bays. Featuring an exceptional 8000 kg (15,500 lbs) lifting capacity and an overhead gantry arch structure, it delivers rigid structural support and unobstructed floor drive-through clearance for safely servicing heavy vehicles, commercial vans, and trucks.
Key Features
- 8000 kg (15,500 lbs) Heavy-Duty Capacity: Built with robust structural steel columns to handle large SUVs, commercial vans, work trucks, and fleet vehicles.
- Overhead Gantry Design: 4400 mm overall height with top crossbeam provides enhanced column rigidity while keeping the service bay floor completely clear of obstructions.
- Wide Drive-Through Clearance: 3300 mm drive-through passing width and 3940 mm overall width easily accommodate wide commercial vehicles.
- Fast Lifting Cycle: Smooth hydraulic lifting and lowering with rise and descent times of 50 seconds or less.
- Versatile Dual-Voltage Motor: High-efficiency 3 kW motor compatible with 220V and 380V electrical configurations.
Technical Specifications
- Model: BC-2P7TG
- Lifting Capacity: 8000 kg / 15,500 lbs
- Lifting Height: 110 mm – 1900 mm
- Overall Height: 4400 mm
- Overall Width: 3940 mm
- Passing Width: 3300 mm
- Lifting / Lowering Time: ≤ 50 s
- Motor Power: 3 kW
- Voltage Options: 220V / 380V
- Available Colors: Blue, Red, Black, Gray
- Net Weight: 1056 kg
- Volume: 1.9 CBM
Packaging & Logistics
- Package 1#: 4500 mm × 580 mm × 700 mm
- Package 2#: 900 mm × 300 mm × 350 mm
- Total Volume: 1.9 CBM
- Total Shipping Weight: 1056 kg
