BOSCAR

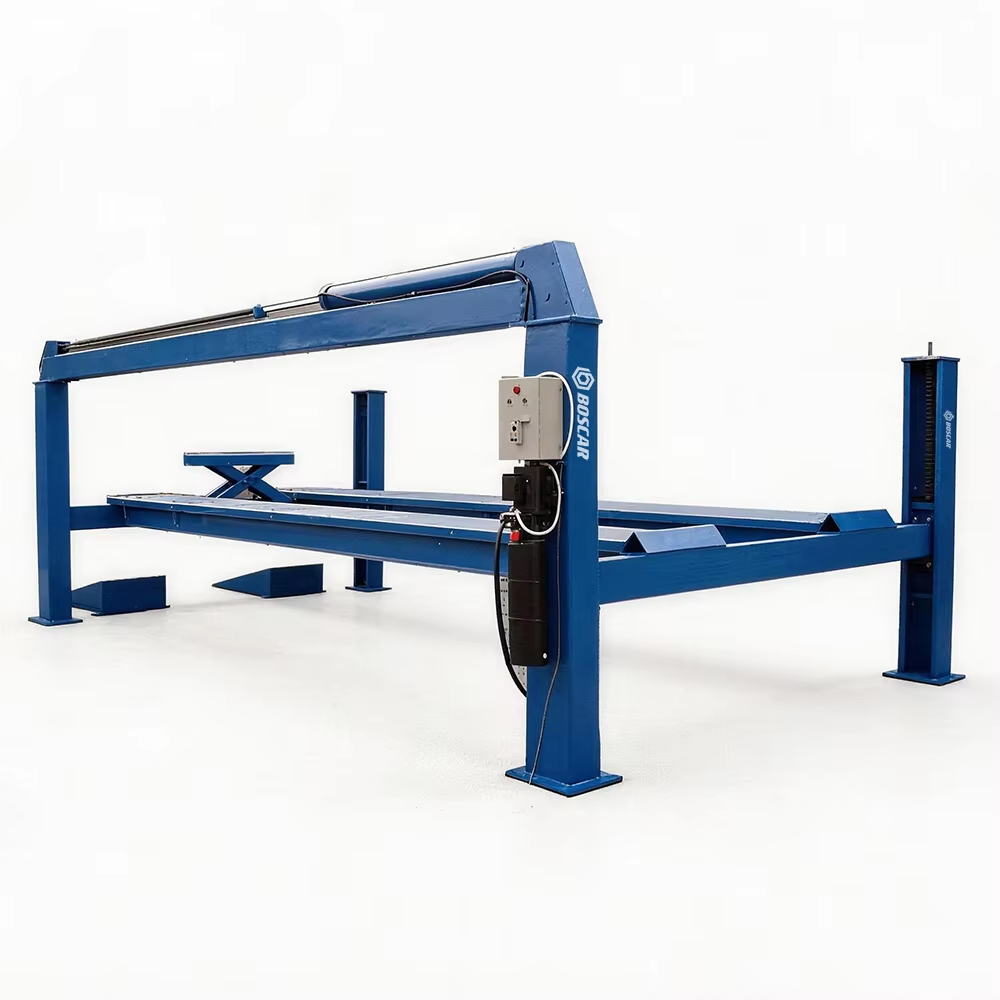

Boscar BC-4P8T 8T 10T Heavy Duty Four Post Car Lift Hydraulic Auto Hoist
¥5,200.00Ex-works · freight quoted separately
Need a full bay layout? Send your dimensions and we return a drawing with airflow, power and packing.
Request a quoteOverview
The BOSCAR BC-4P8T is a commercial heavy-duty four-post hydraulic vehicle lift engineered for heavy trucks, commercial fleet vehicles, and automotive workshops. Available in 8000 kg (8T) and 10000 kg (10T) lifting capacities, it features an extra-long 6000 mm runway platform and an integrated 3T secondary rolling jack for efficient wheel and brake maintenance.
Key Features
- 8T and 10T Heavy-Duty Lifting Capacity: Robust structural four-column construction designed to support large commercial trucks, buses, vans, and heavy equipment.
- Extra-Long 6000 mm Runway Platform: Ample platform length accommodates extended wheelbase commercial vehicles with 600 mm platform width and 3750 mm total width.
- Integrated 3T Secondary Jack: Equipped with one 3000 kg (3T) capacity jack with 450 mm lifting stroke for quick wheel-free wheel and suspension servicing.
- Wide Drive-Through Clearance: 2550 mm passing width and 3230 mm column-to-column width ensure safe vehicle drive-on and technician movement.
- High-Efficiency Power Unit: Reliable 3 kW motor with dual voltage compatibility (380V / 220V) delivering smooth, controlled hydraulic lifting.
Technical Specifications
- Model: BC-4P8T
- Lifting Capacity Options: 8000 kg (8T) / 10000 kg (10T)
- Platform Lifting Height: 160 mm – 1700 mm
- Secondary Jack Capacity: 3000 kg (3T)
- Secondary Jack Lifting Height: 450 mm (1 jack included)
- Platform Length: 6000 mm
- Platform Width: 600 mm
- Total Overall Width: 3750 mm
- Passing Width: 2550 mm
- Width Between Poles: 3230 mm
- Motor Power: 3 kW
- Voltage Options: 380V / 220V
- Net Weight: 1900 kg
- Volume: 3.5 CBM
Packaging & Logistics
- Packing Dimensions: 6100 mm × 600 mm × 950 mm
- Total Volume: 3.5 CBM
- Total Weight: 1900 kg
