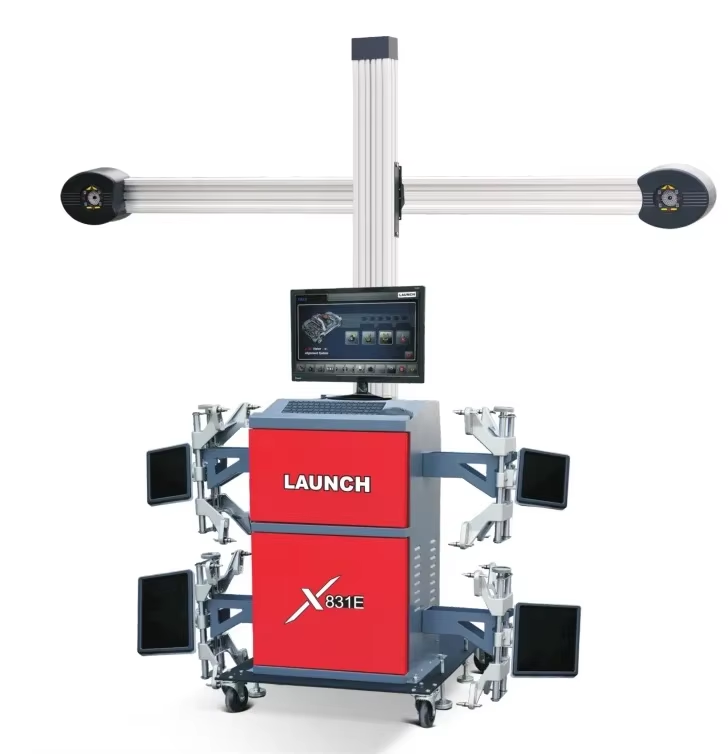

Launch X 831S Auto Tracking Beam 11 25 Inch Rim 3D Four Wheel Alignment Machine
BOSCAR

Launch X 831S Auto Tracking Beam 11 25 Inch Rim 3D Four Wheel Alignment Machine

¥3,300.00Ex-works · freight quoted separately
Production 15–25 days 24-month warranty Docs & HS codes included

Need a full bay layout? Send your dimensions and we return a drawing with airflow, power and packing.

Request a quote

Overview

The Launch X-831S 3D Four-Wheel Alignment Machine is a high-precision automotive alignment system designed for professional auto workshops, tire service centers, and dealerships. Engineered with an intelligent auto-tracking motorized beam that automatically moves up and down to follow vehicle elevation on a lift, it delivers accurate real-time measurements across passenger cars and light commercial vehicles. Compatible with 11-25 inch rim sizes and powered by 220V, it provides comprehensive geometric diagnostic parameters with industrial-grade measurement precision.

Key Features

  • Auto Tracking Beam: Motorized camera beam moves up and down automatically to maintain optimal optical tracking across different working heights.
  • Broad Rim Compatibility: Supports 11-25 inch rim clamping range for versatile vehicle service.
  • High-Precision Optical Measurement: Display accuracy of 1 / 0.01' / 0.1 mm with precise angle and linear measurement tolerance.
  • Comprehensive Alignment Parameters: High-accuracy measurement for Toe, Camber, Caster, King Pin Inclination (SAI), Retraction angle, Thrust line angle, Wheelbase, and Tire diameter.
  • Industrial Power & Build: Reliable 300W 220V power supply engineered for continuous workshop operation.

Technical Specifications

  • Brand: Launch
  • Model: X-831S
  • Alignment Type: 3D Four-Wheel Alignment
  • Beam Function: Auto Tracking (Motorized vertical beam adjustment)
  • Rim Clamping Size: 11 - 25 inches
  • Display Accuracy: 1 / 0.01' / 0.1 mm
  • Toe Angle Accuracy: ±2'
  • Camber Angle Accuracy: ±2'
  • Caster Angle Accuracy: ±5'
  • King Pin Inclination Angle Accuracy: ±5'
  • Retraction Angle Accuracy: ±2'
  • Thrust Line Angle Accuracy: ±2'
  • Wheel Base Accuracy: ±2 mm
  • Tire Diameter Accuracy: ±2 mm
  • Power Supply: 300W, 220V
  • Place of Origin: CN, SHG

Package & Shipping Details

  • Total Gross Weight: 289 kg
  • Total Shipping Volume: 1.75 CBM
  • Package 1#: 290 x 35 x 59 cm (118 kg)
  • Package 2#: 60 x 66 x 105 cm (75 kg)
  • Package 3#: 85 x 71 x 122 cm (96 kg)
