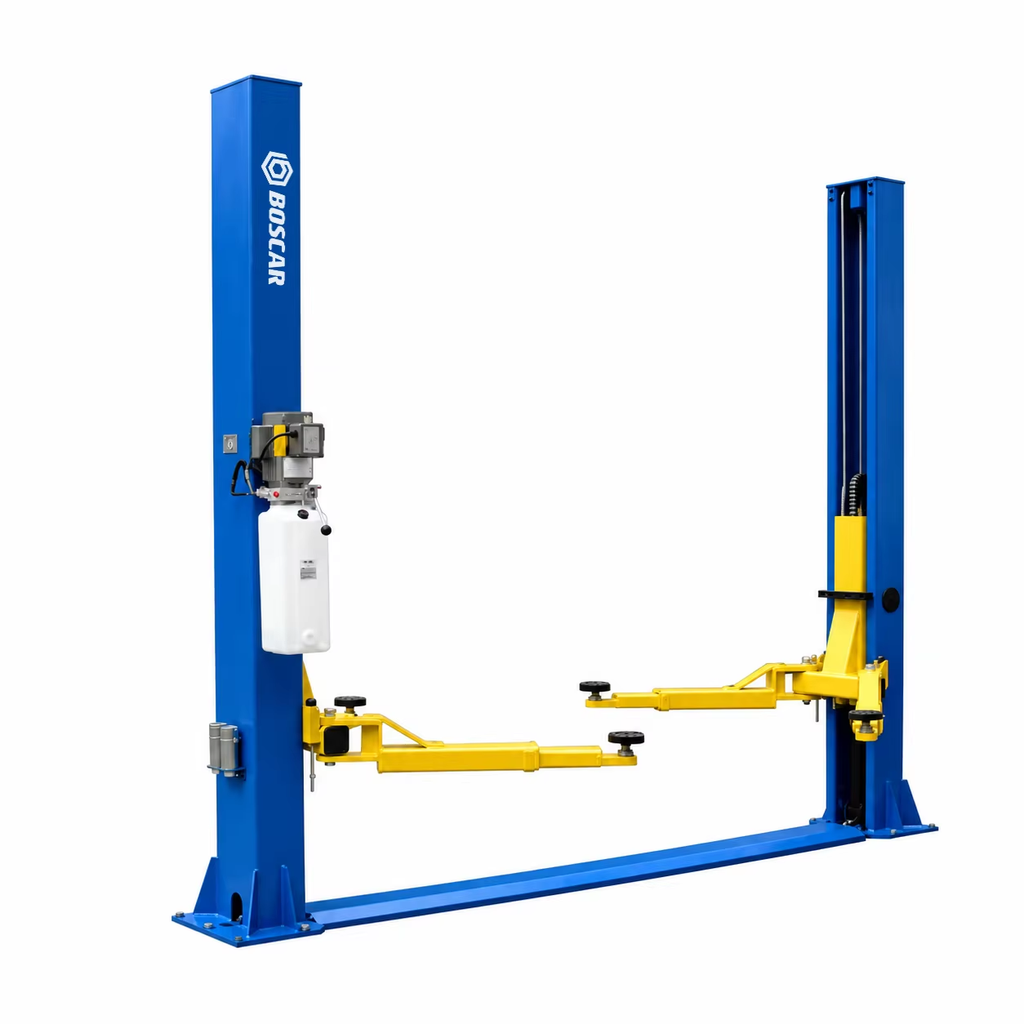

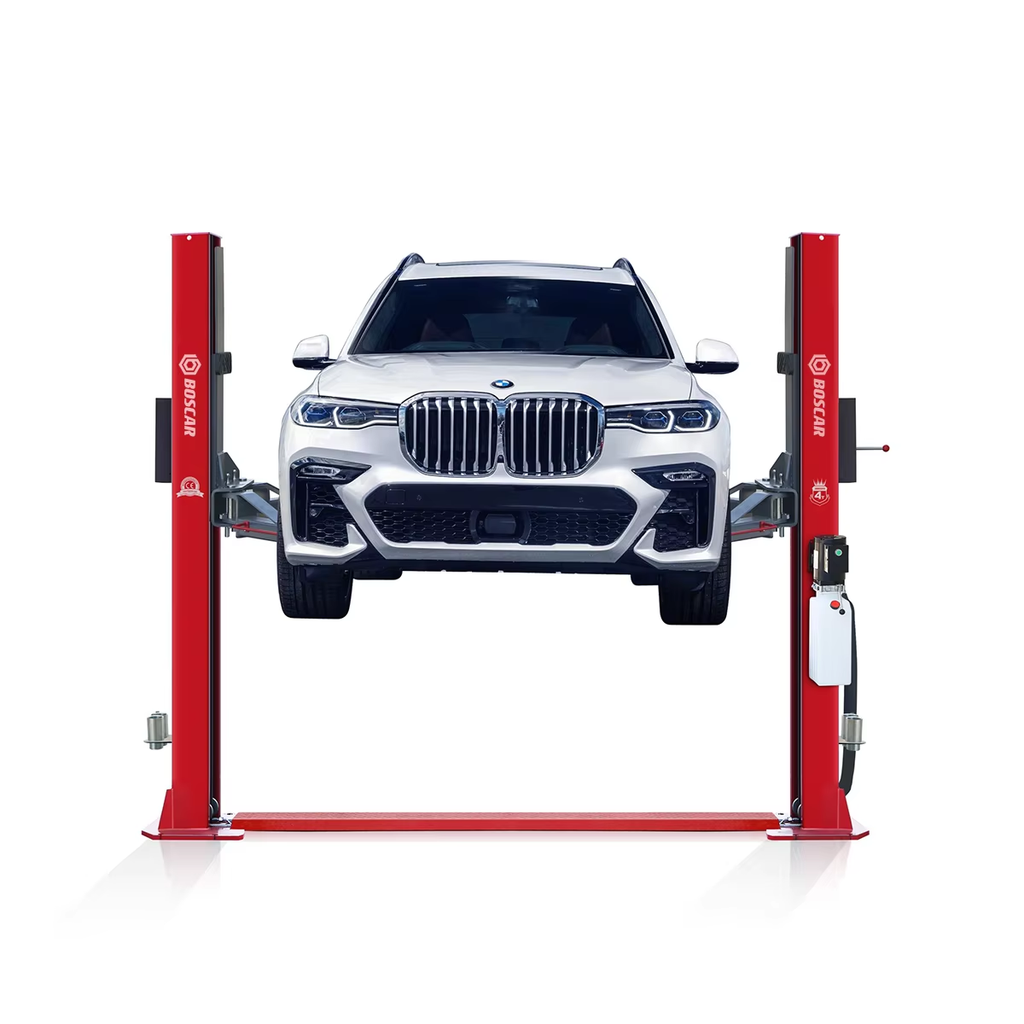

BOSCAR 4T 5T 5.5T Floor Plate Two Post Car Lift Hydraulic Auto Hoist with Single Arm Manual Unlock (TPL-4000BE)

The BOSCAR TPL-4000BE Floor Plate Two Post Car Lift is an industrial-strength hydraulic vehicle hoist designed for professional automotive repair shops, tire service centers, and commercial garages. Featuring a low-profile floor plate design with clear overhead access, this heavy-duty lift delivers robust lifting capacities of 4,000 kg, 5,000 kg, and 5,500 kg (4T / 5T / 5.5T) with single-arm manual safety release for dependable, secure workshop operation.

Advantages of Single-Point Manual Unlock

• Single-Side Operation, Fast & Convenient: Disengage safety locks on both columns simultaneously from a single release lever on one post—eliminating the need to walk around the vehicle.
• Time & Labor Saving Efficiency: A single technician can easily release and lower the lift, minimizing unnecessary movement and significantly boosting vehicle turnover in busy repair bays.

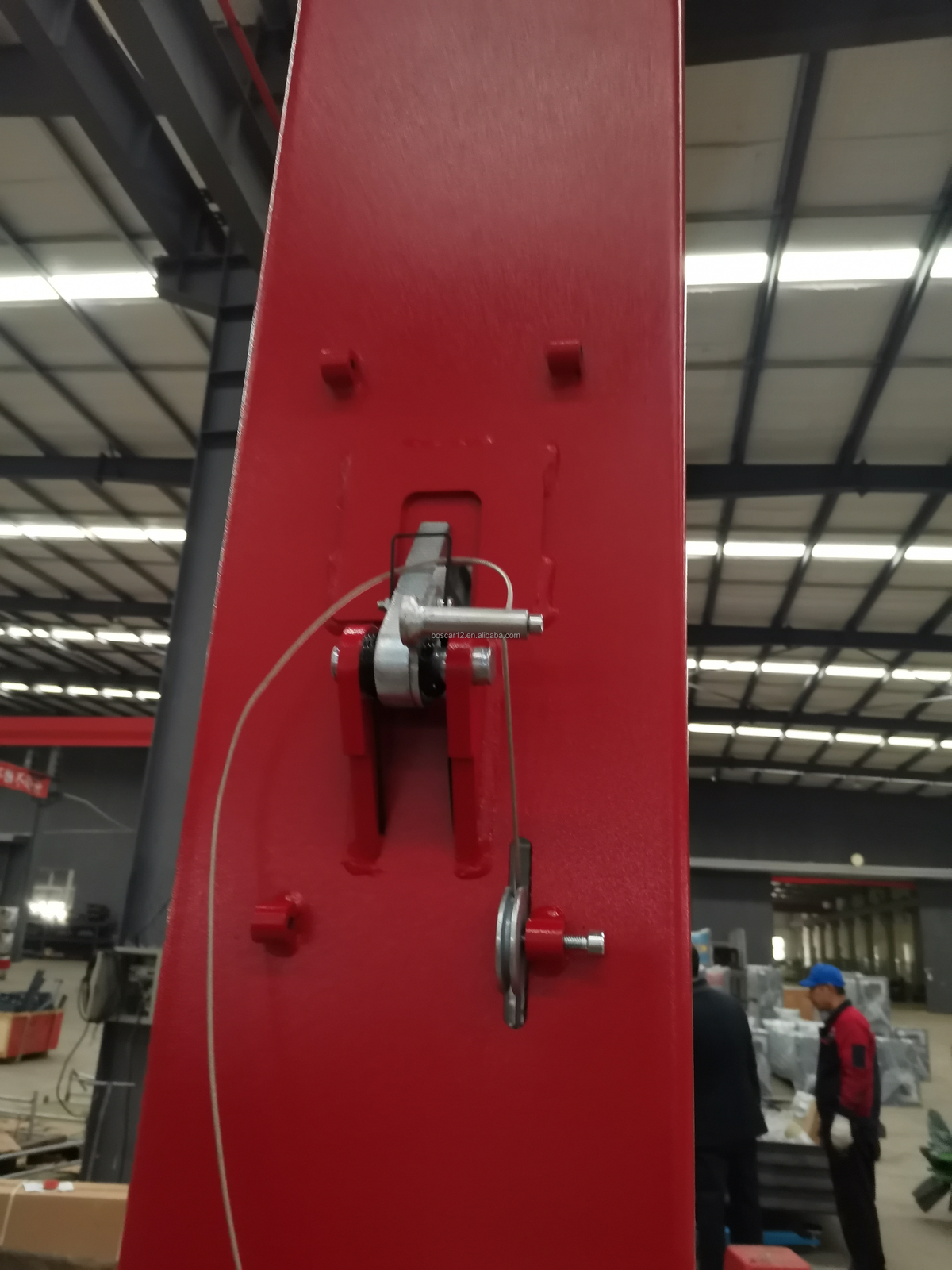

• Dual-Column Linkage, Reduced Operator Error: Both column mechanical locks are linked via steel cables to unlock in perfect tandem, eliminating the risk of accidental single-side lock engagement.
• Simple Mechanical Design & Easy Maintenance: Compared to pneumatic or electric release systems, manual mechanical linkages feature fewer moving components, making troubleshooting and routine servicing straightforward.
• Lower Initial & Operating Costs: No external air compressor connection or complex solenoid actuators are required for unlocking, helping keep equipment acquisition and long-term upkeep costs low.
• Centralized Operator Control: The manual release handle is conveniently located directly adjacent to the hydraulic power unit, allowing the operator to unlock and control descent from one unified workstation.

Key Features

• Heavy-Duty Lifting Capacities (4T / 5T / 5.5T): Available in 4,000 kg, 5,000 kg, and 5,500 kg ratings to effortlessly lift sedans, SUVs, vans, and light commercial trucks.
• Low-Profile Floor Plate Design: Bottom plate drive-over design eliminates overhead height restrictions, making it ideal for standard-height ceilings and tall commercial vehicles.

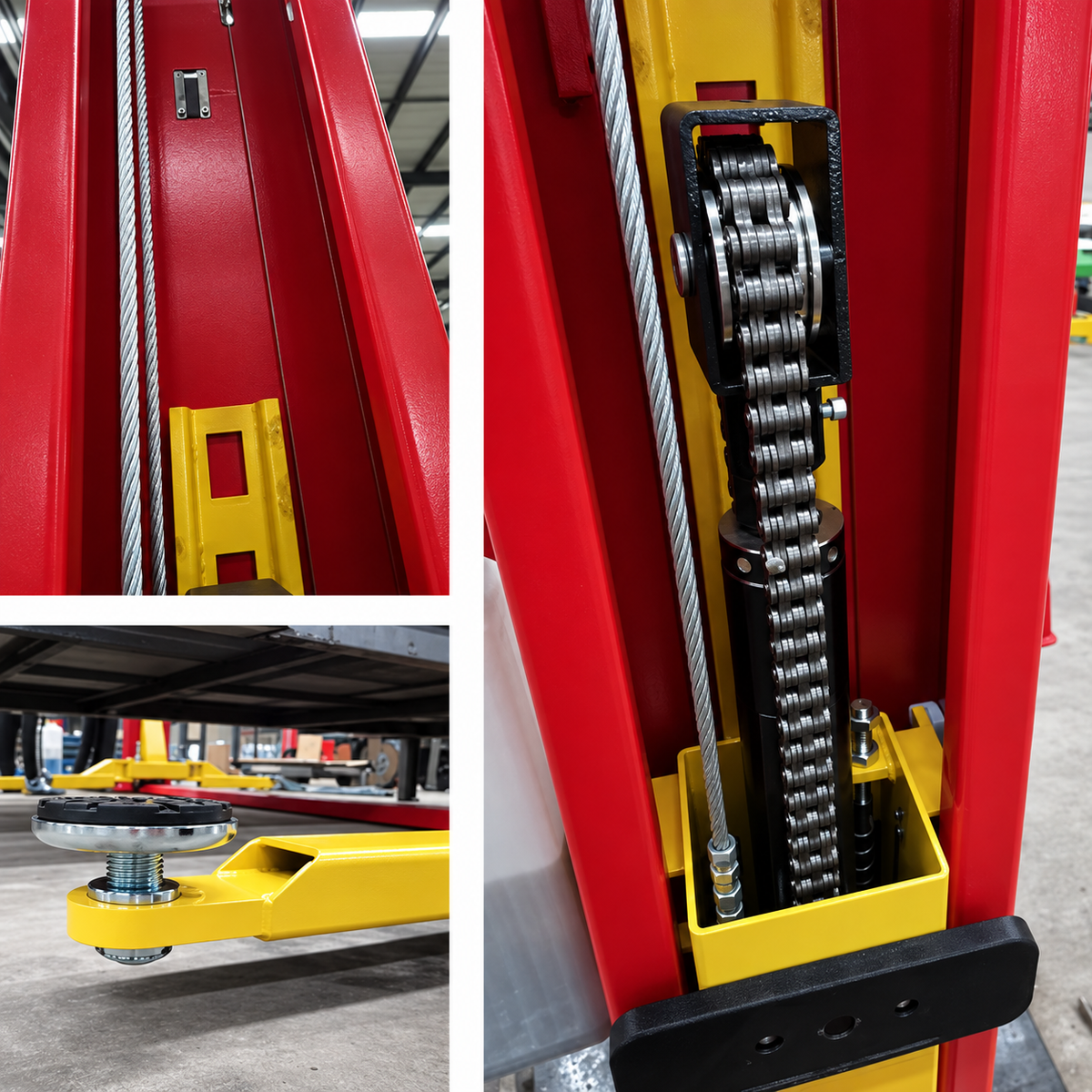

• Dual Hydraulic Cylinder Drive: Direct-drive dual hydraulic cylinder system with high-strength equalization steel cables ensures ultra-smooth, balanced lifting and descending.
• Rapid Cycle Time: Lifting and descent cycles completed in under 50 seconds, powered by an efficient 2.2 kW high-torque motor.

Technical Specifications

• Model: TPL-4000BE
• Lifting Capacity Options: 4,000 kg / 5,000 kg / 5,500 kg (4T / 5T / 5.5T)
• Release Mechanism: Single arm manual unlock (single-side release)
• Lifting Height Range: 100 mm – 1,900 mm (3.9" – 74.8")
• Lifting / Descent Time: ≤ 50 seconds
• Motor Power: 2.2 kW
• Power Supply Options: 220V / 380V (1-Phase / 3-Phase, 50/60Hz)
• Total Machine Height: 2,820 mm (111.0")
• Total Machine Width: 3,380 mm (133.1")
• Drive-Through Width Between Columns: 2,800 mm (110.2")
• Package Weight: 610 kg (1,345 lbs)
• Package Volume: 1.2 CBM
• Package Dimensions:
• - Package 1#: 2,850 x 520 x 700 mm (L x W x H)
• - Package 2#: 900 x 300 x 350 mm (L x W x H)

Applications & Installation Requirements

• Vehicle Compatibility: Suitable for passenger cars, sports cars, SUVs, pickup trucks, and commercial vans.
• Workshop Uses: Perfect for brake servicing, tire rotation, suspension work, oil changes, and comprehensive underbody inspections.
• Floor Foundation: Requires a level concrete floor with a minimum thickness of 150 mm (6 in) for secure anchor bolt installation.
• Warranty & Support: 1-Year Manufacturer Warranty with lifetime remote technical support from BOSCAR.
