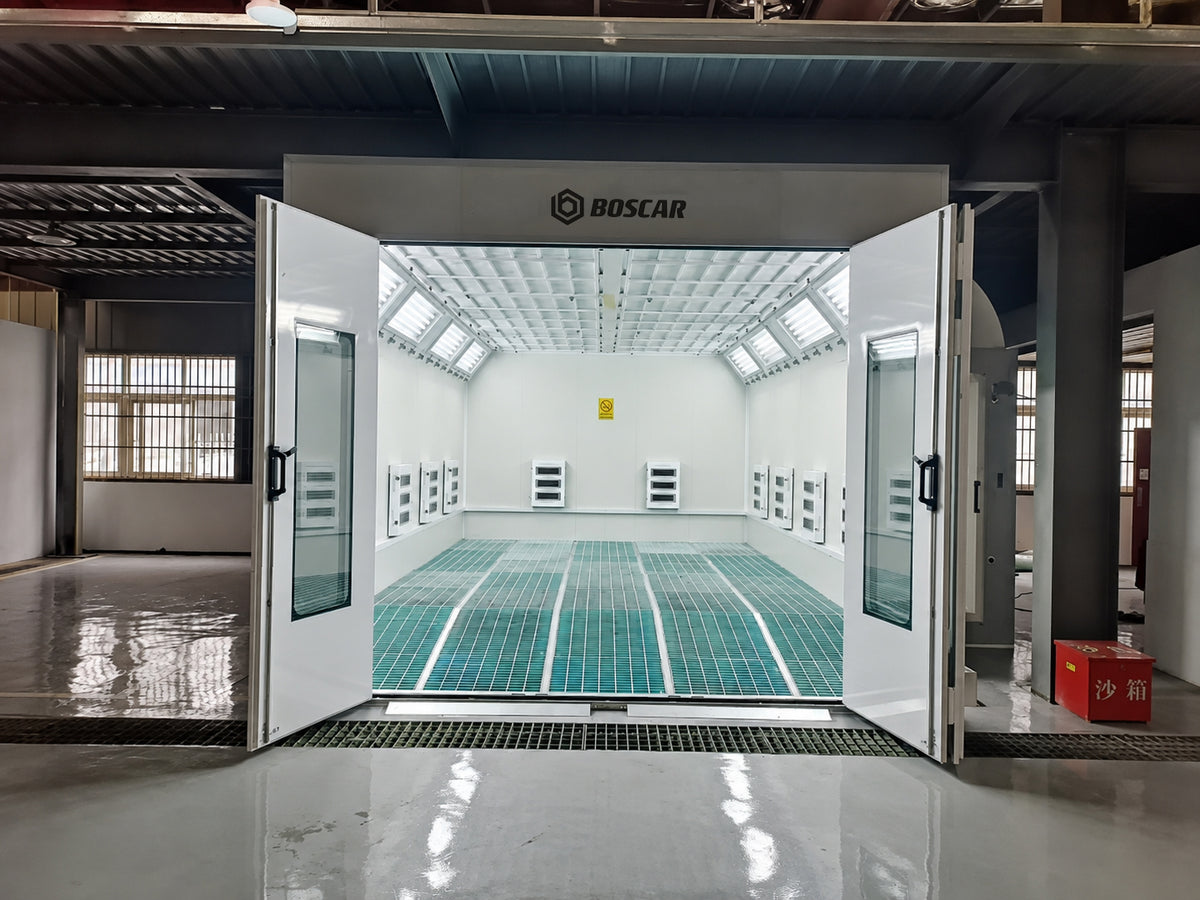

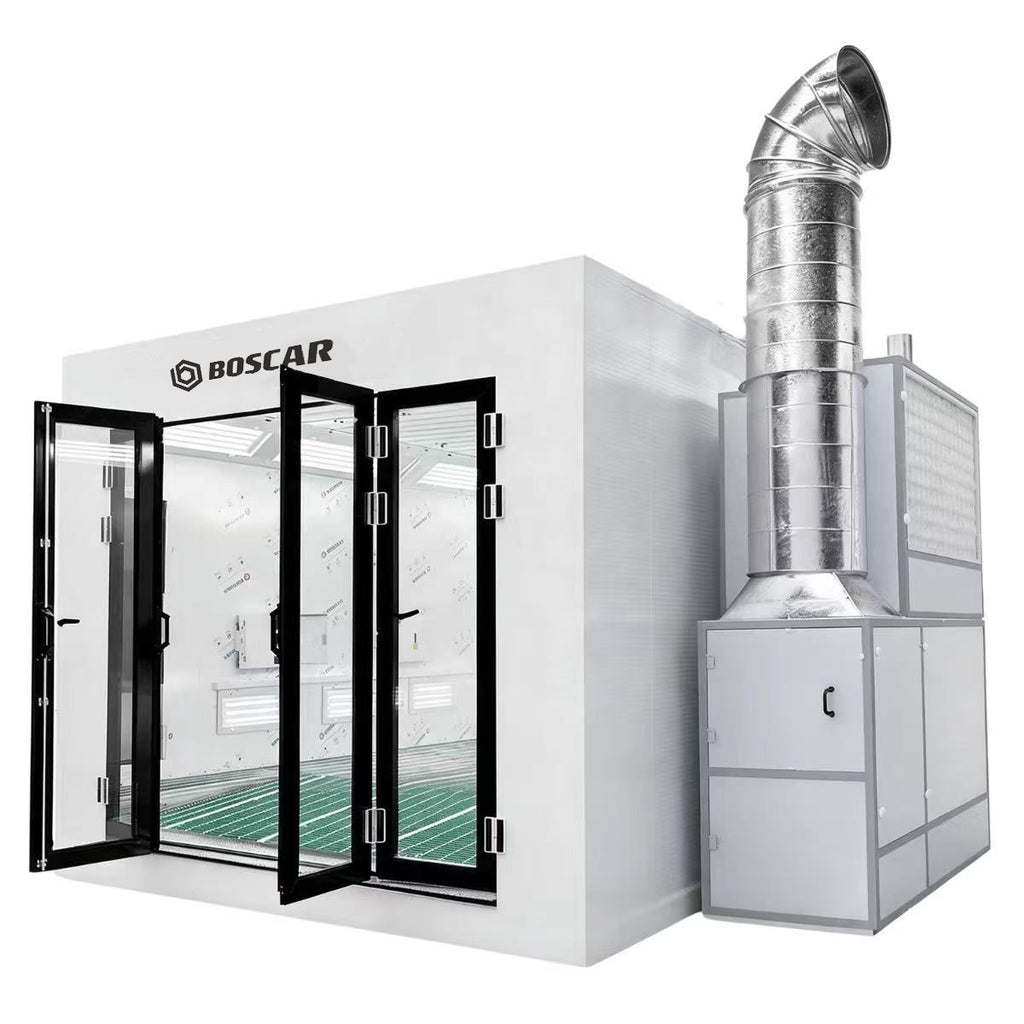

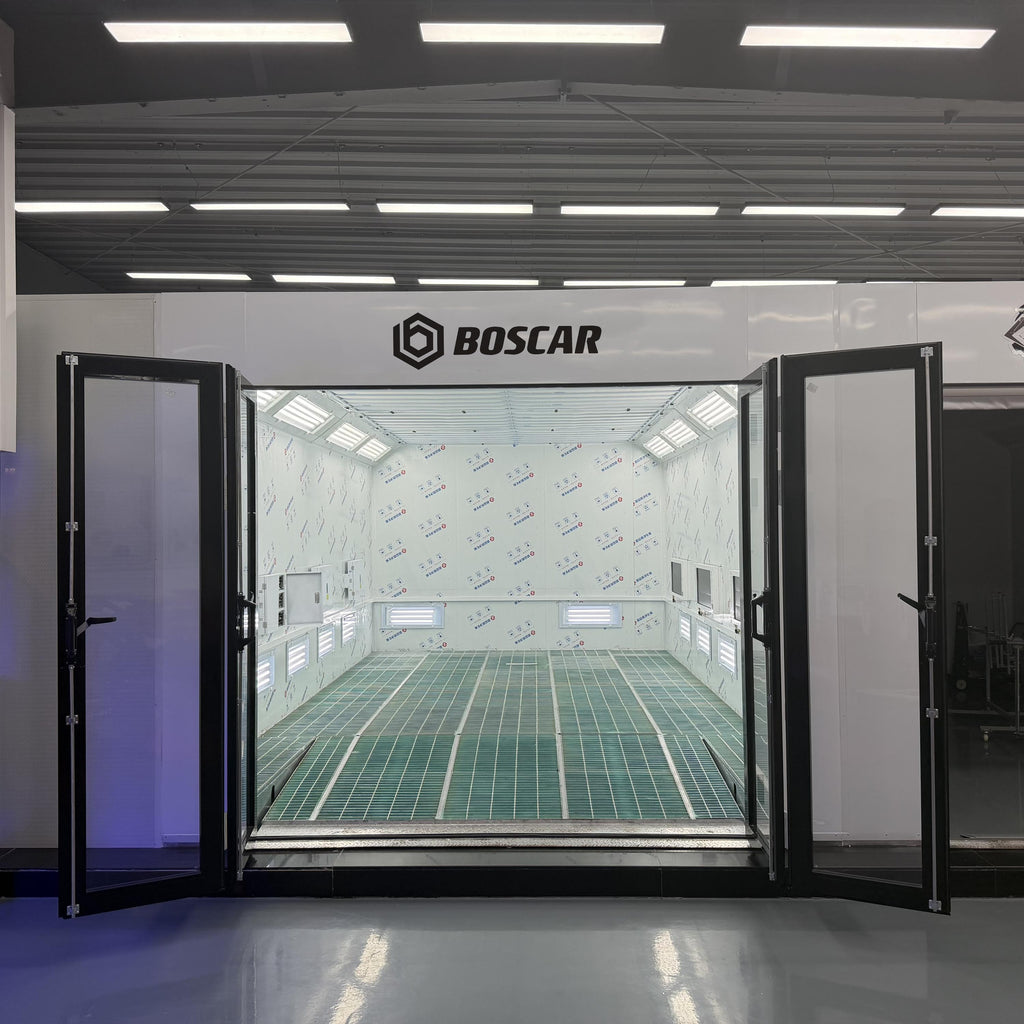

Luxury 7m Spray Booth Internal ramp Car Paint Room with Electric/Diesel Heating

Overview

This luxury 7m spray booth is built for automotive painting and baking work, with a choice of electric, diesel heating and support for 220V, 380V, or 415V power. The booth is available in blue, red, gray, and white, and features a rust-resistant floor structure, roof and floor filters, and a control system.

Key Features

• Electric, diesel heating options
• 8 sets of infrared lamps provide 24 kW of electric heating
• 50 mm flame-resistant wallboard with 0.45 mm galvanized sheet

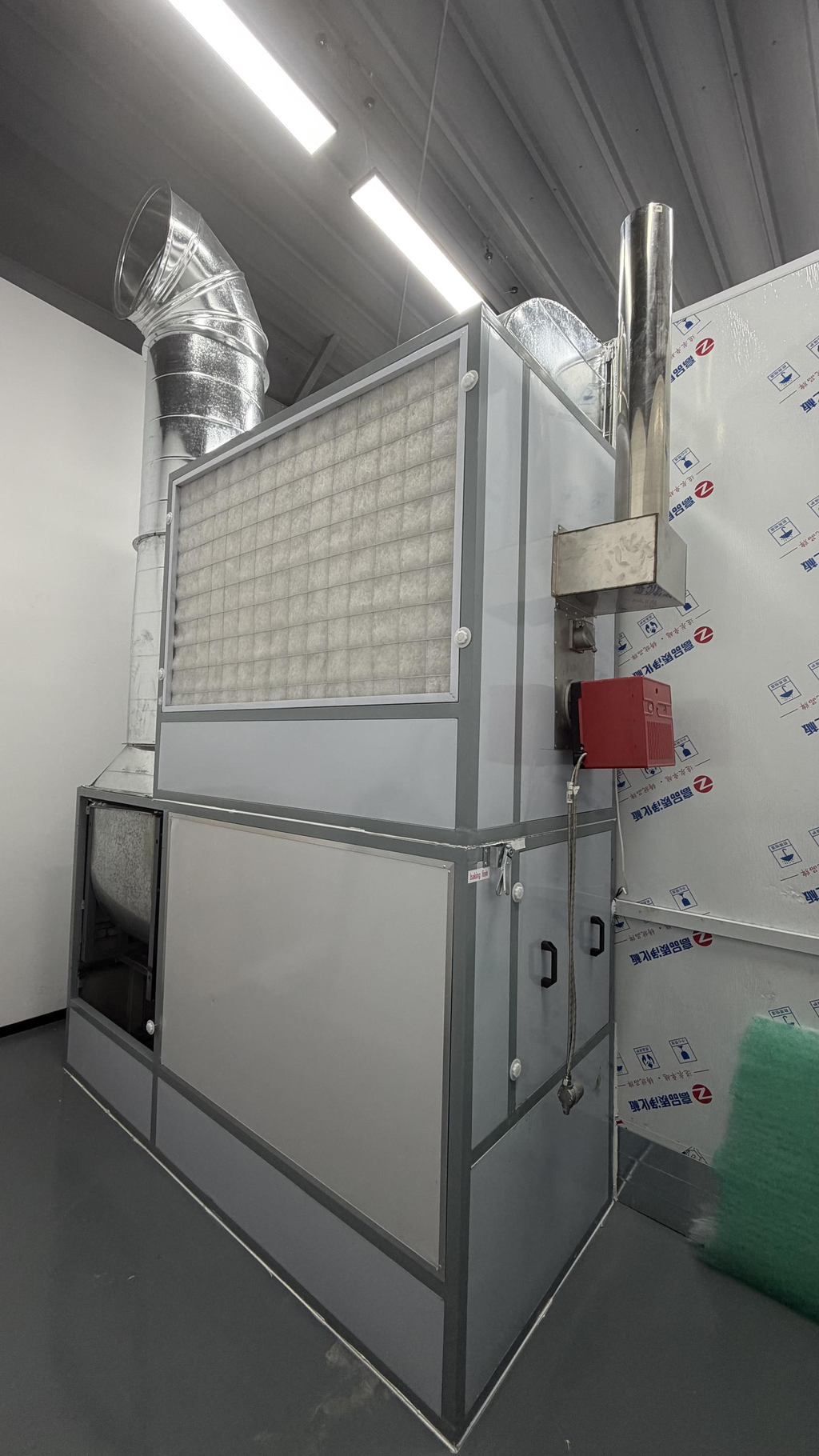

• Ventilation system with 2 sets of 3 kW inlet fans and 1 outlet fan
• LED system with 8 x 4 pcs roof LED and 10 side LED

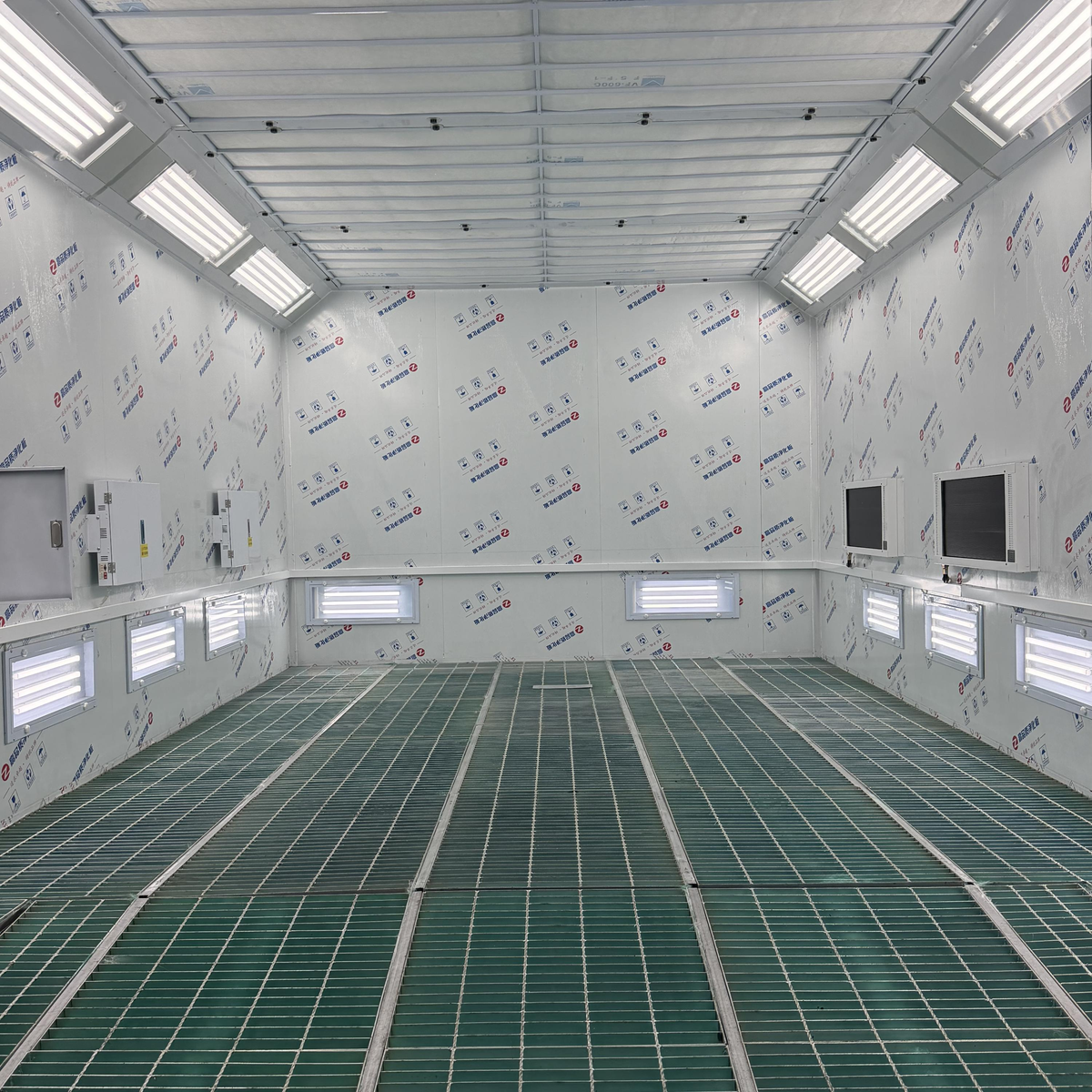

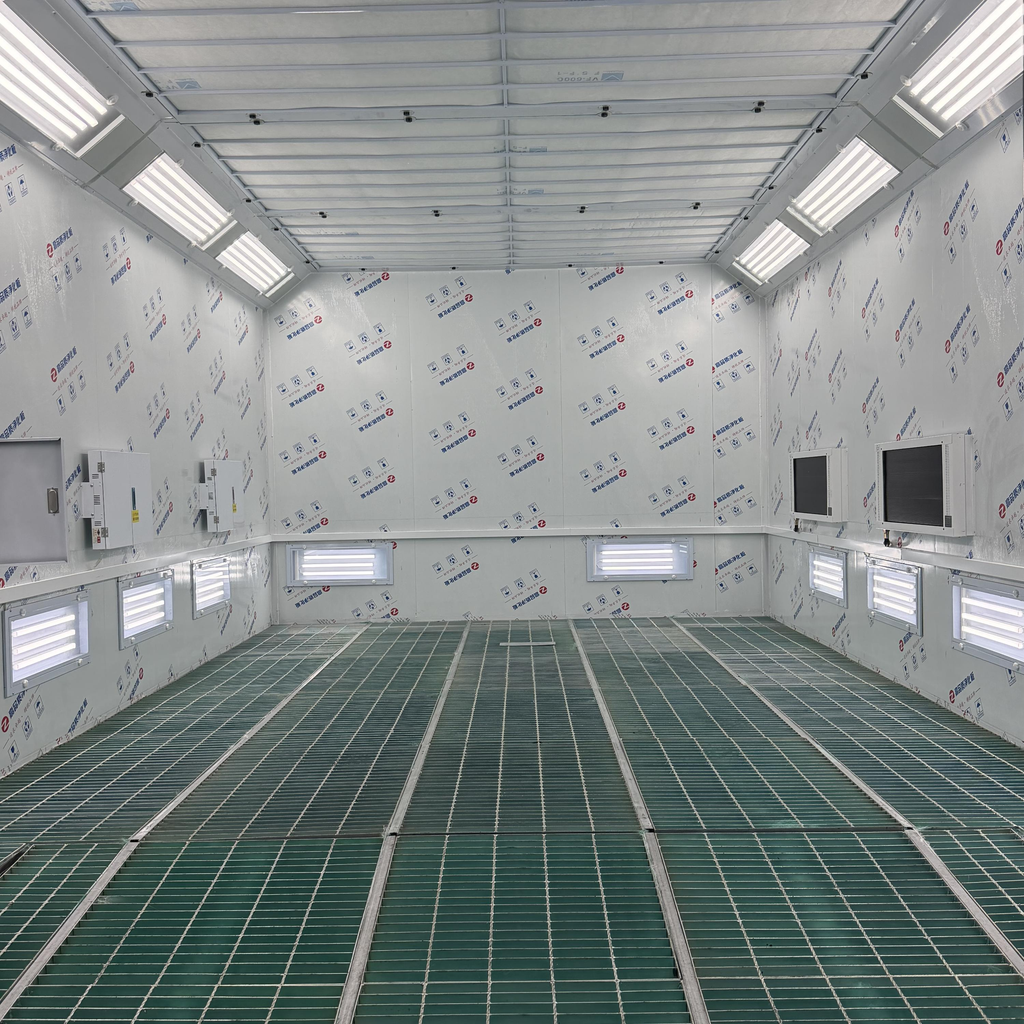

• Three rows of grills floor and 2 rows of walk floor, powder coated and rust-resistant

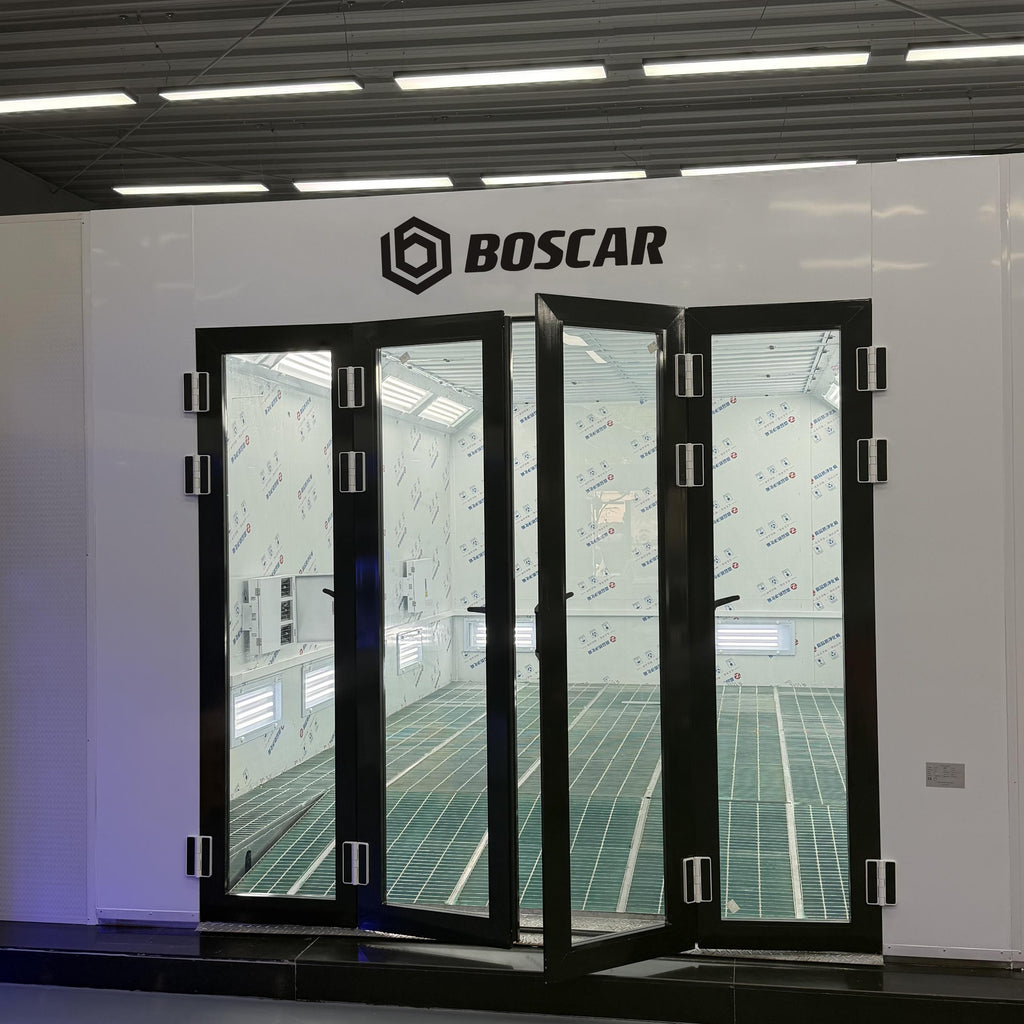

• Four big glass main doors and a side door
• Roof and floor filters, and a control system

Technical Specifications

• Inner size: 7400 x 3900 x 2600 mm (L x W x H)
• Outer size: 7500 x 5000 x 3300 mm (L x W x H)
• Electric heating: 8 sets infrared lamp, 24 kW
• Diesel burner: RIELLO G20 (optional)
• Gas burner: RIELLO FS10 (optional)
• Voltage: 220V / 380V / 415V
• Color options: blue, red, gray, and white
• Loading capacity: 7 T
• Weight and volume: 3 T, 20 CBM


Package Details

• Package size, crate 1: 4.2 x 1.1 x 2.2 m
• Package size, crate 2: 4.2 x 1.1 x 2.2 m
