Boscar Full 5 Rows Grills Floor Grating Paint Booth with Left or Right Hand Fan Direction

Overview

This luxury 8m spray booth is built for automotive painting and baking work, with a choice of electric, diesel heating and support for 220V, 380V, or 415V power. The booth is available in blue, red, gray, and white, and features a spacious interior, a rust-resistant floor structure, roof and floor filters, and a control system covering temperature, time, spray, heating, and lighting.

Key Features

• Electric, diesel heating options

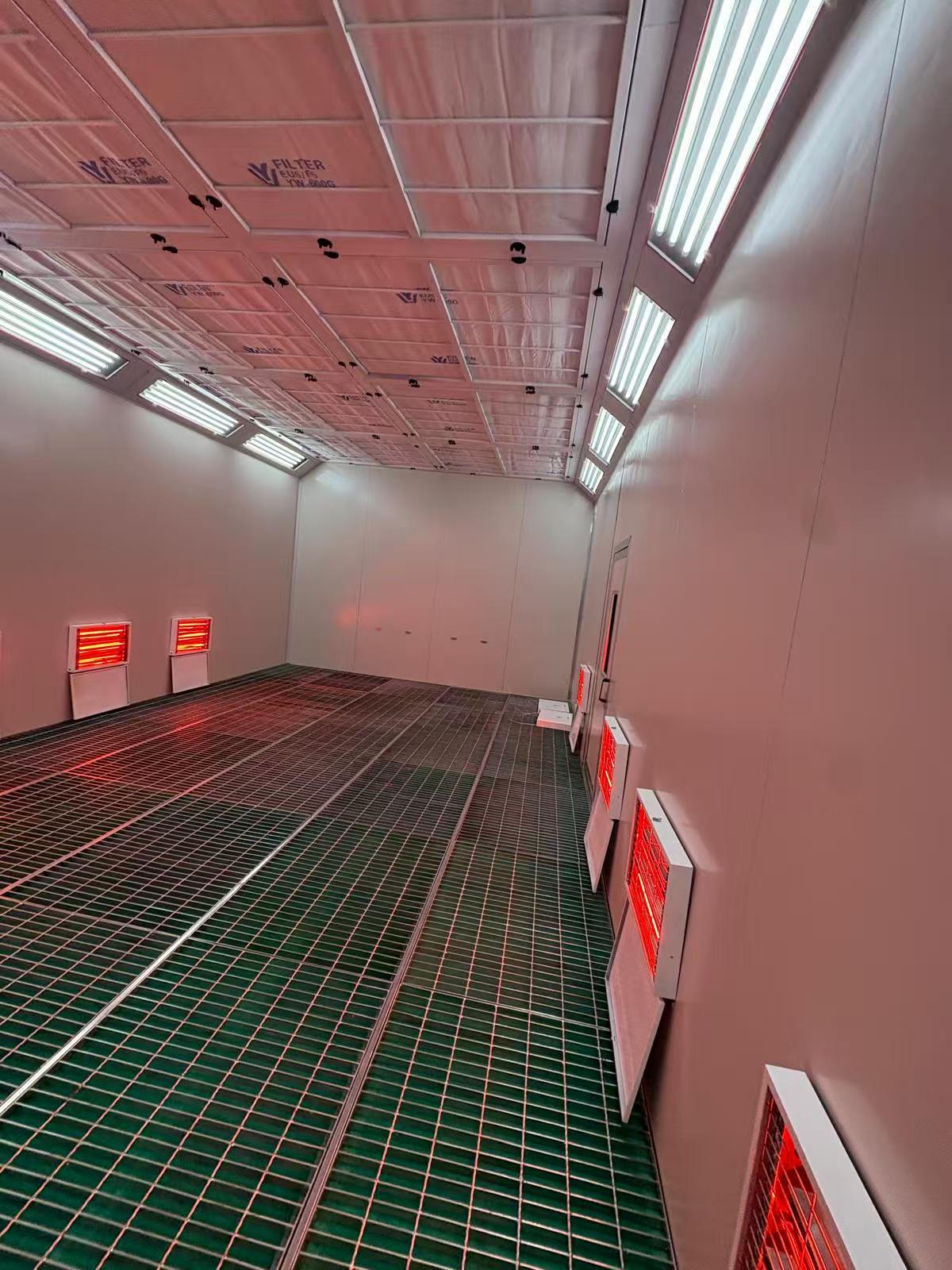

• 10 sets of infrared lamps provide 30 kW of electric heating

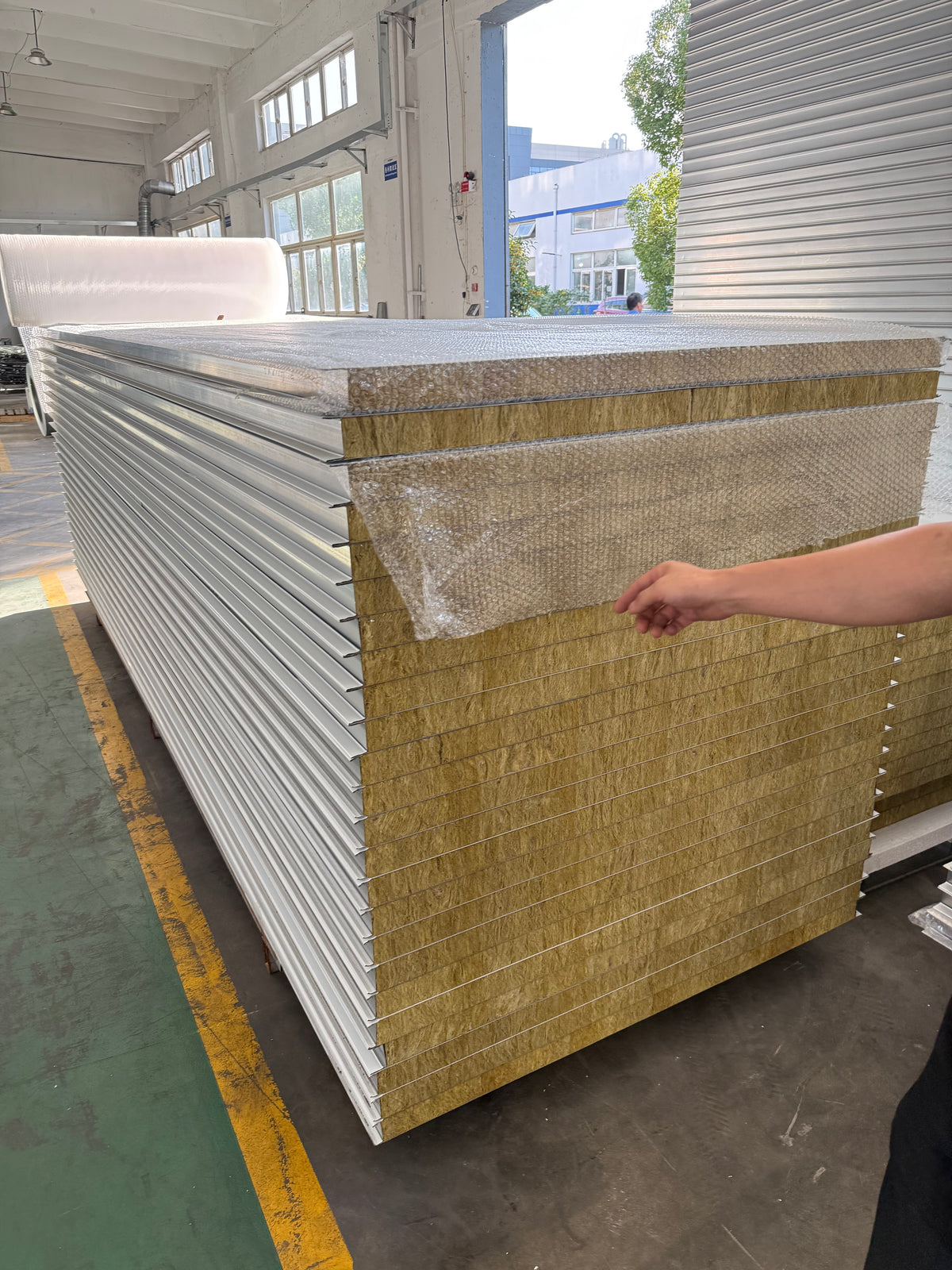

• 50 mm flame-resistant wallboard with 0.45 mm galvanized sheet
• Ventilation system with 2 sets of 4 kW inlet fans and 1 set of 7.5 kW outlet fan

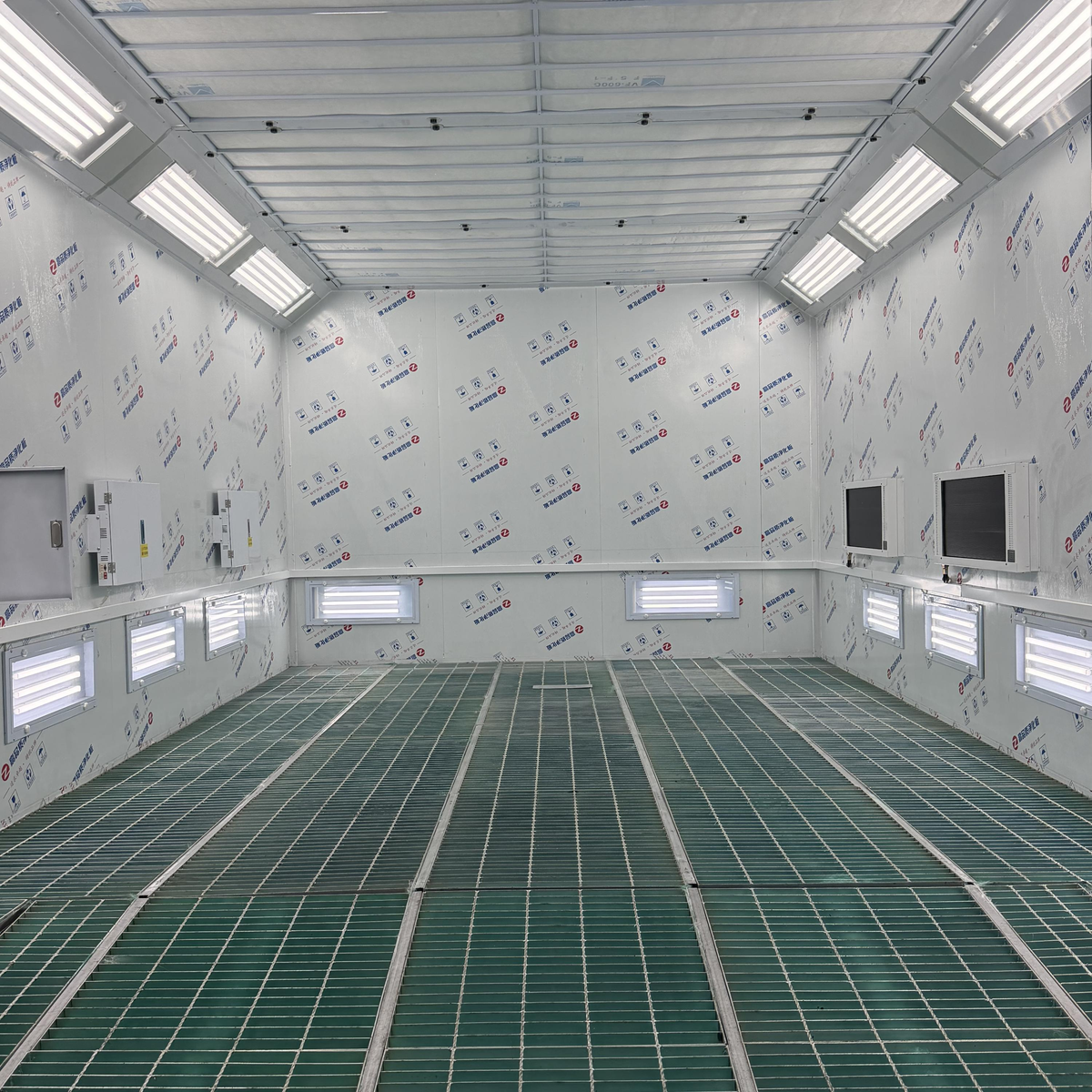

• LED system with 10 x 4 pcs roof LED and 12 side LED

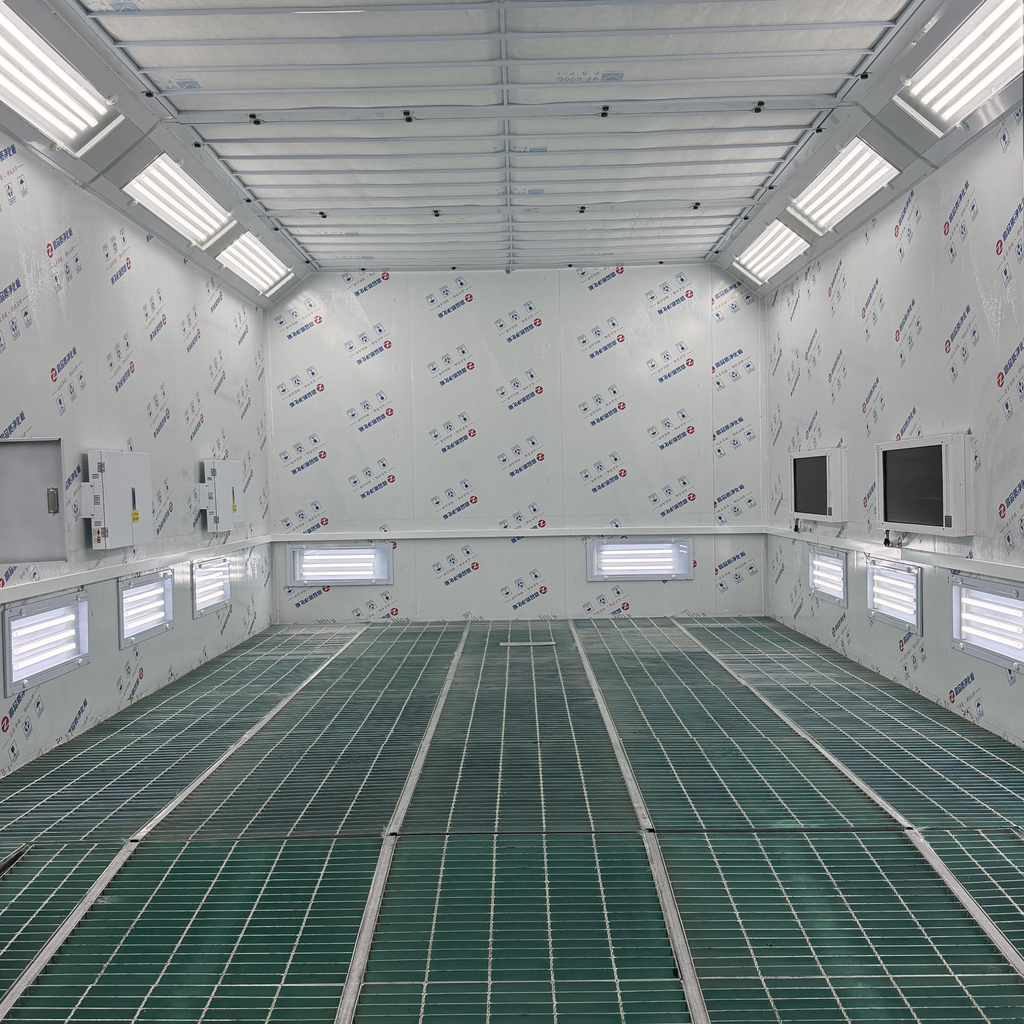

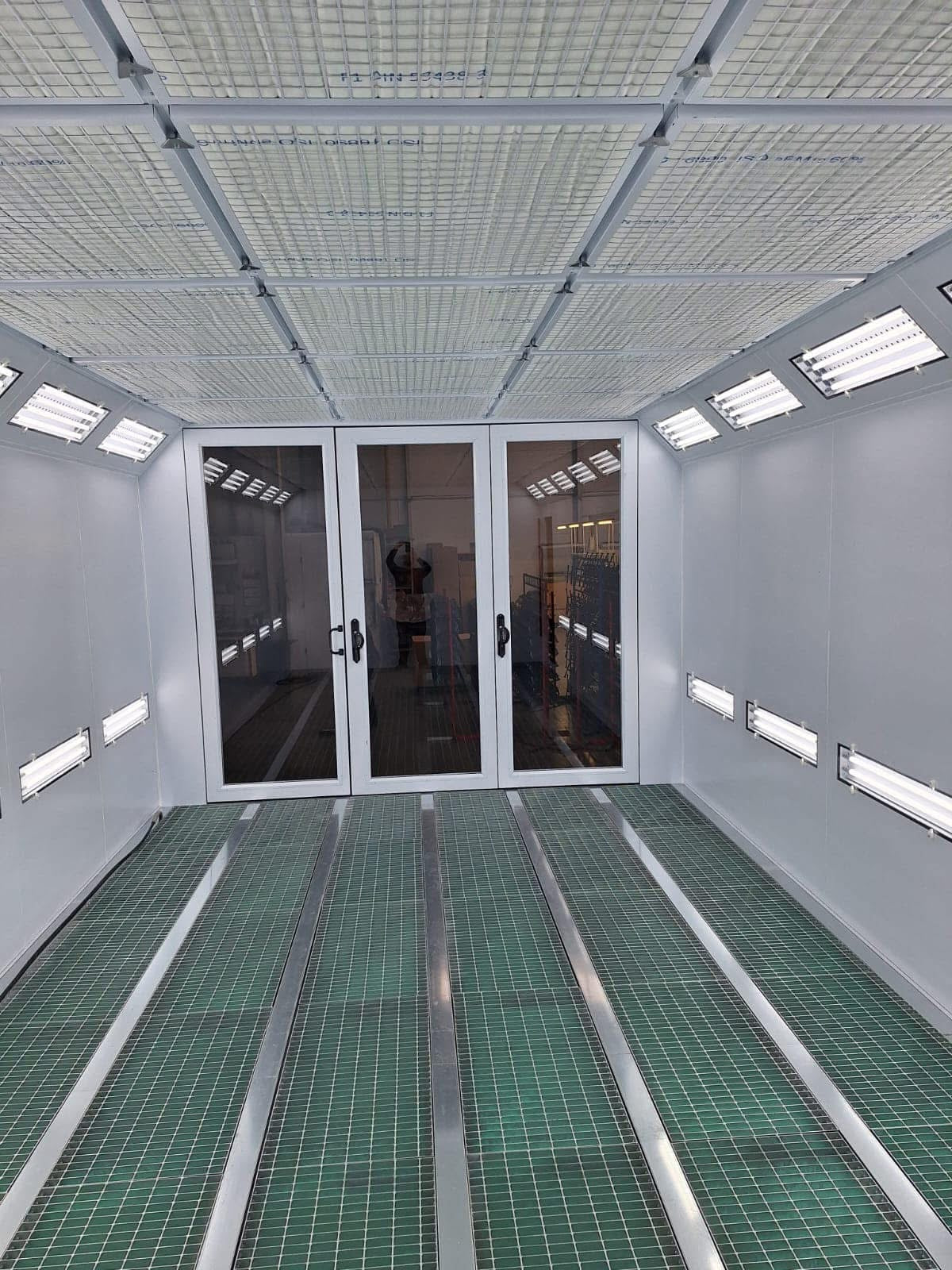

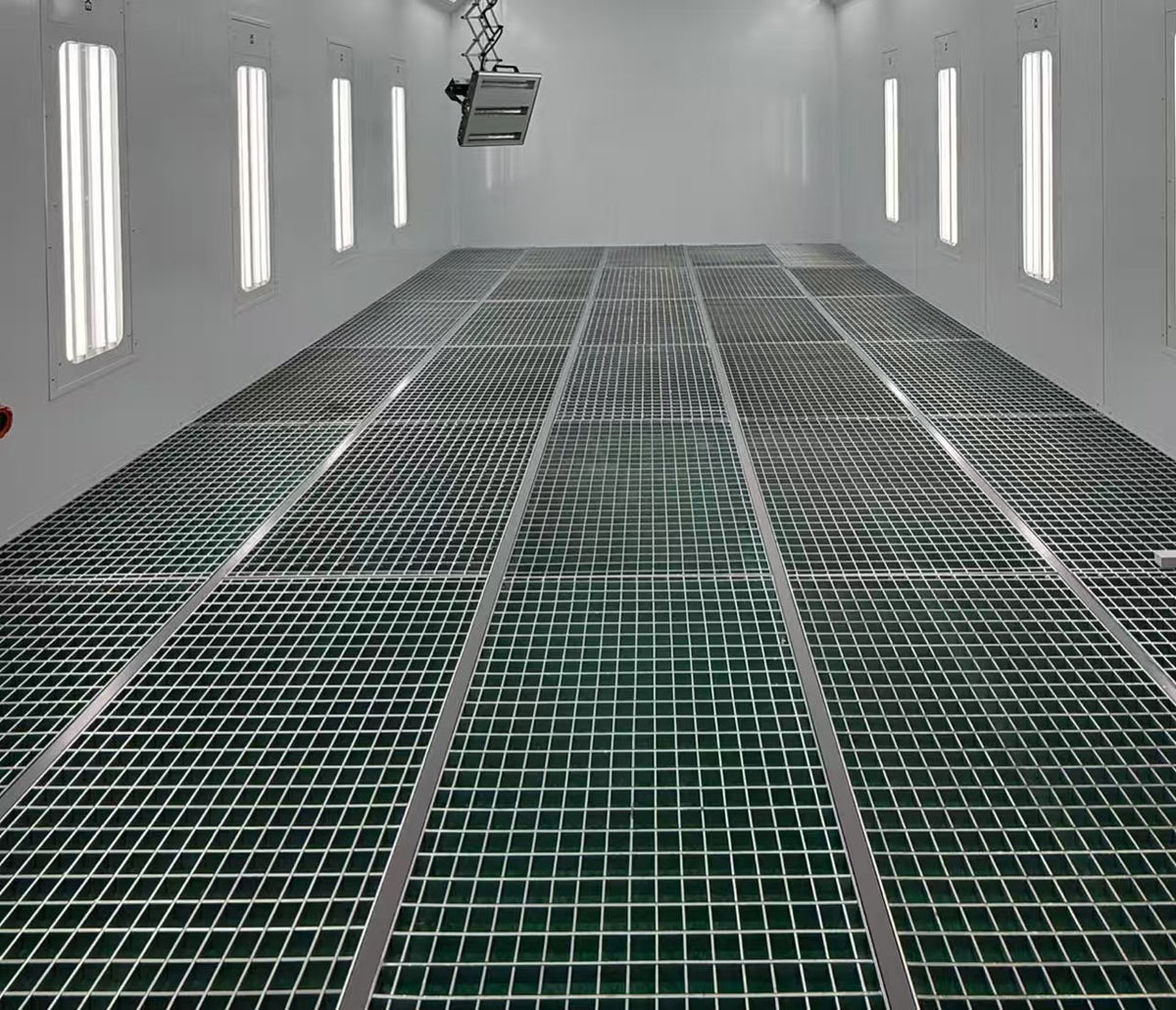

• Three rows of grills floor and 2 rows of walk floor, powder coated and rust-resistant

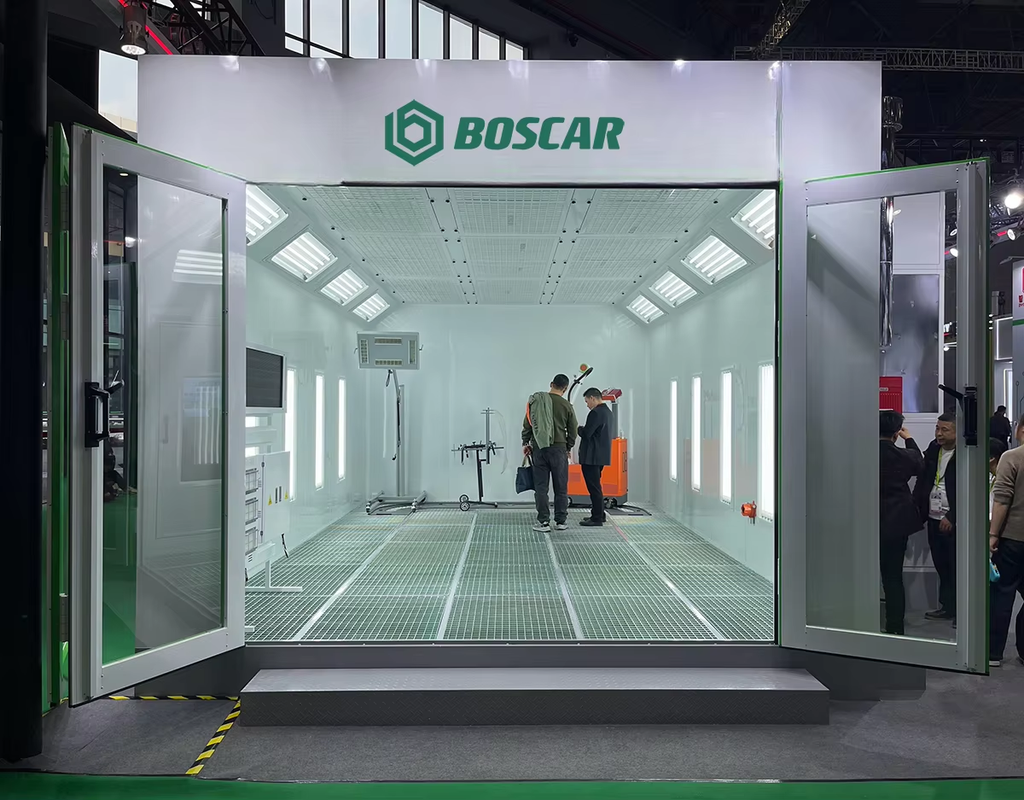

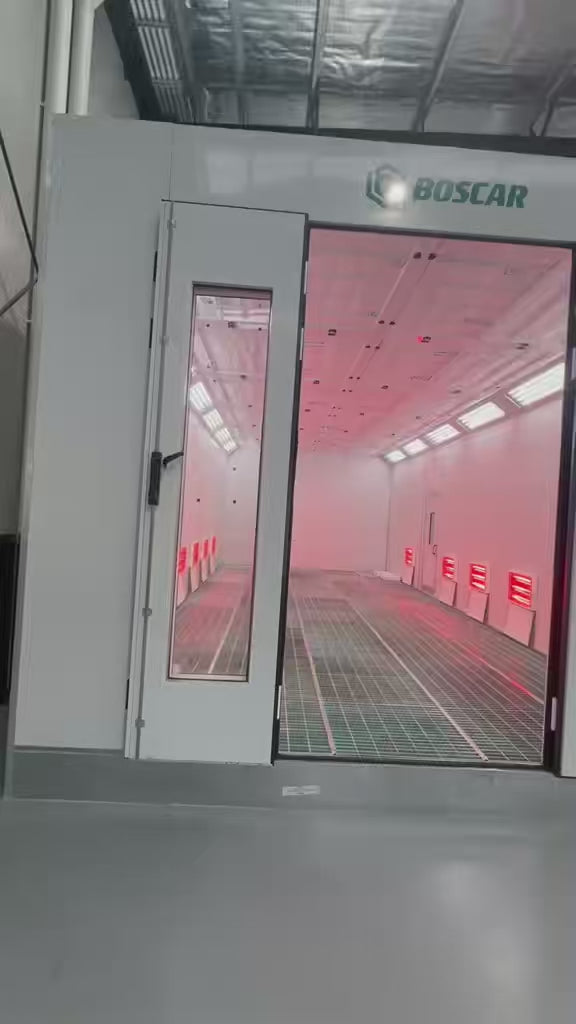

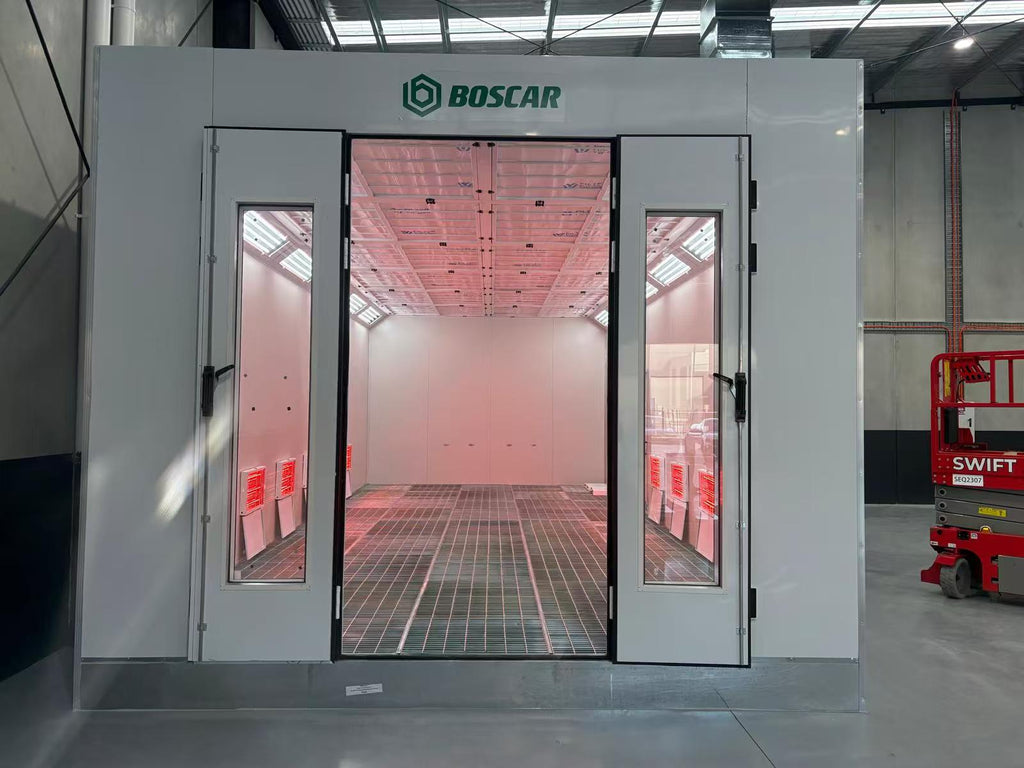

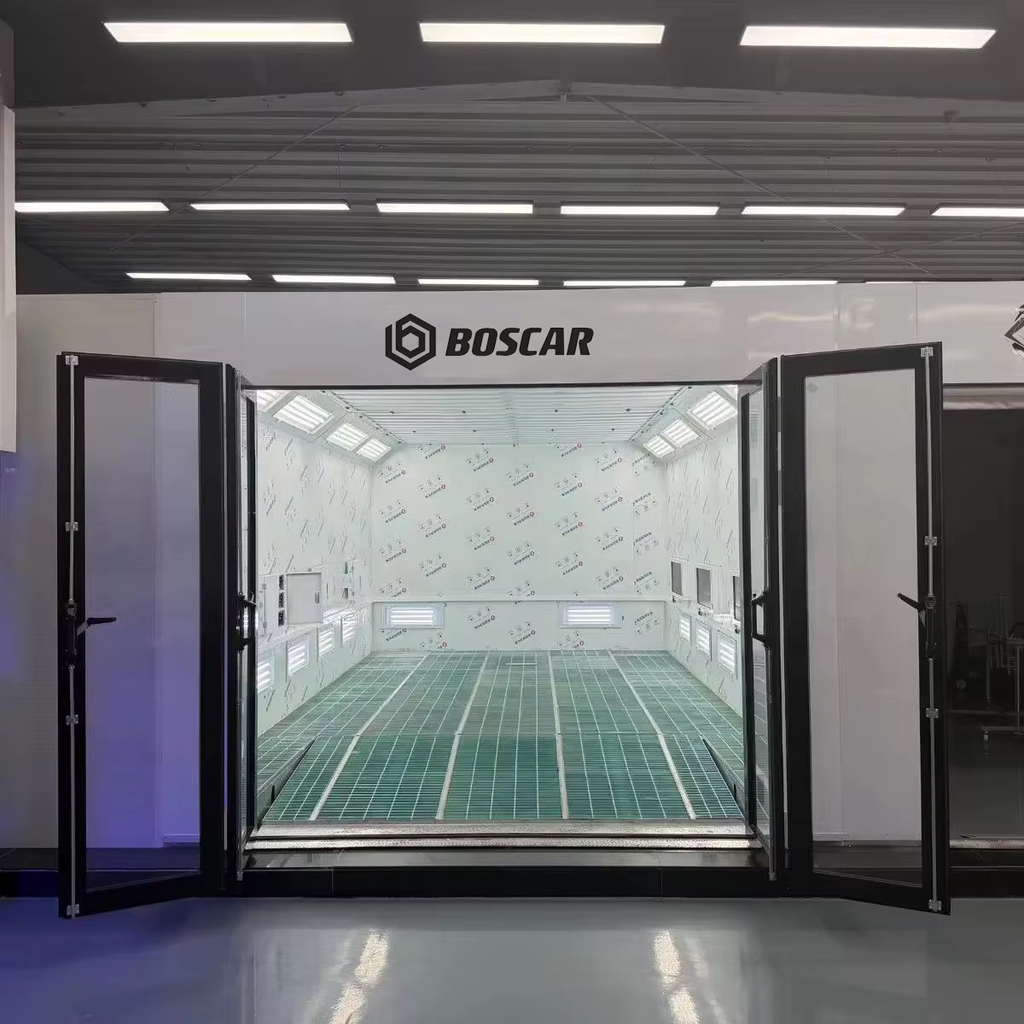

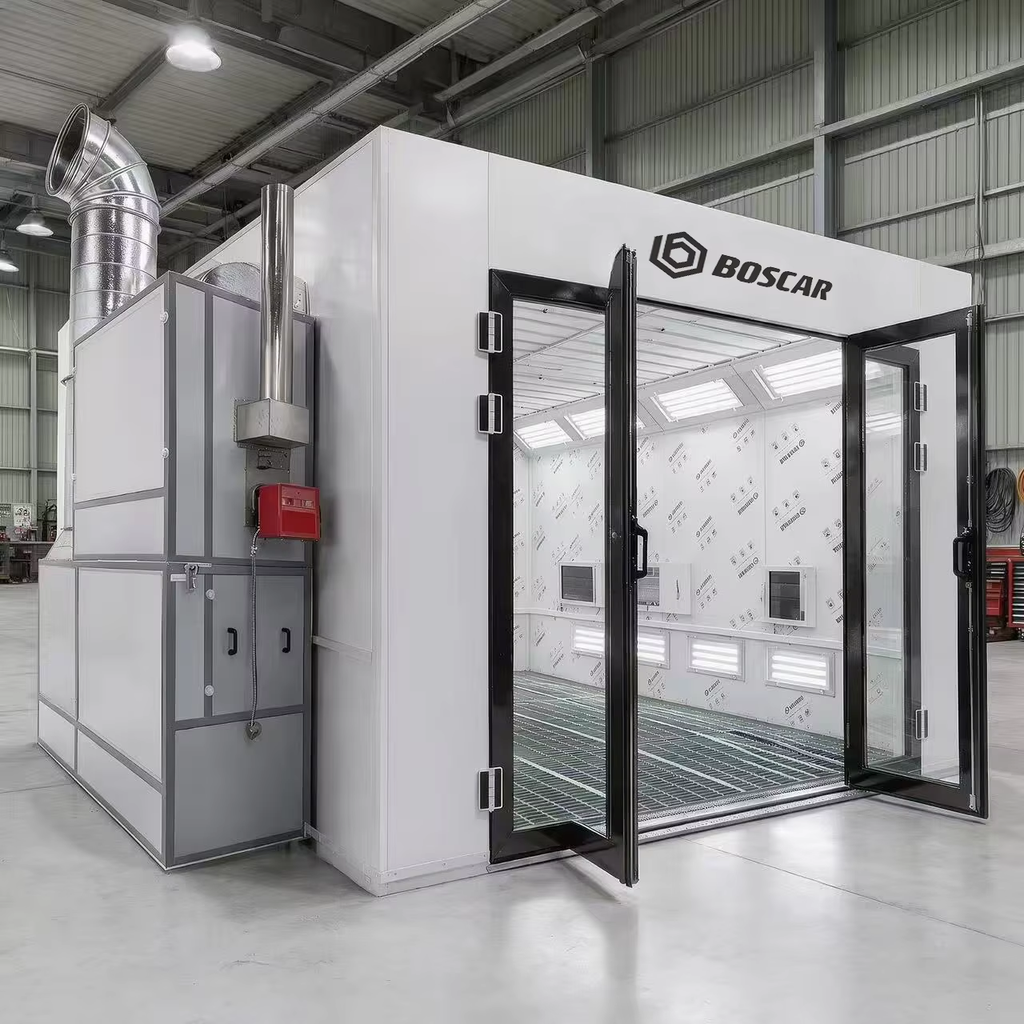

• Four big glass main doors and a side door
• Roof and floor filters
• Control system for temperature, time, spray, heating, and lighting

Technical Specifications

• Inner size: 7900 x 4200 x 2800 mm (L x W x H)
• Outer size: 8000 x 5400 x 3400 mm (L x W x H)
• Electric heating: 10 sets infrared lamp, 30 kW
• Diesel burner: RIELLO G20 (optional)
• Gas burner: RIELLO FS20 (optional)
• Voltage: 220V / 380V / 415V
• Color options: blue, red, gray, and white
• Loading capacity: 7 T
• Weight and volume: 3.5 T, 22 CBM


Package Details

• Package size, crate 1: 4.5 x 1.1 x 2.2 m
• Package size, crate 2: 4.5 x 1.1 x 2.2 m
