Fully Automatic 12\"-30\" Car Tire Changer Machine with Tire Lifter and Picker

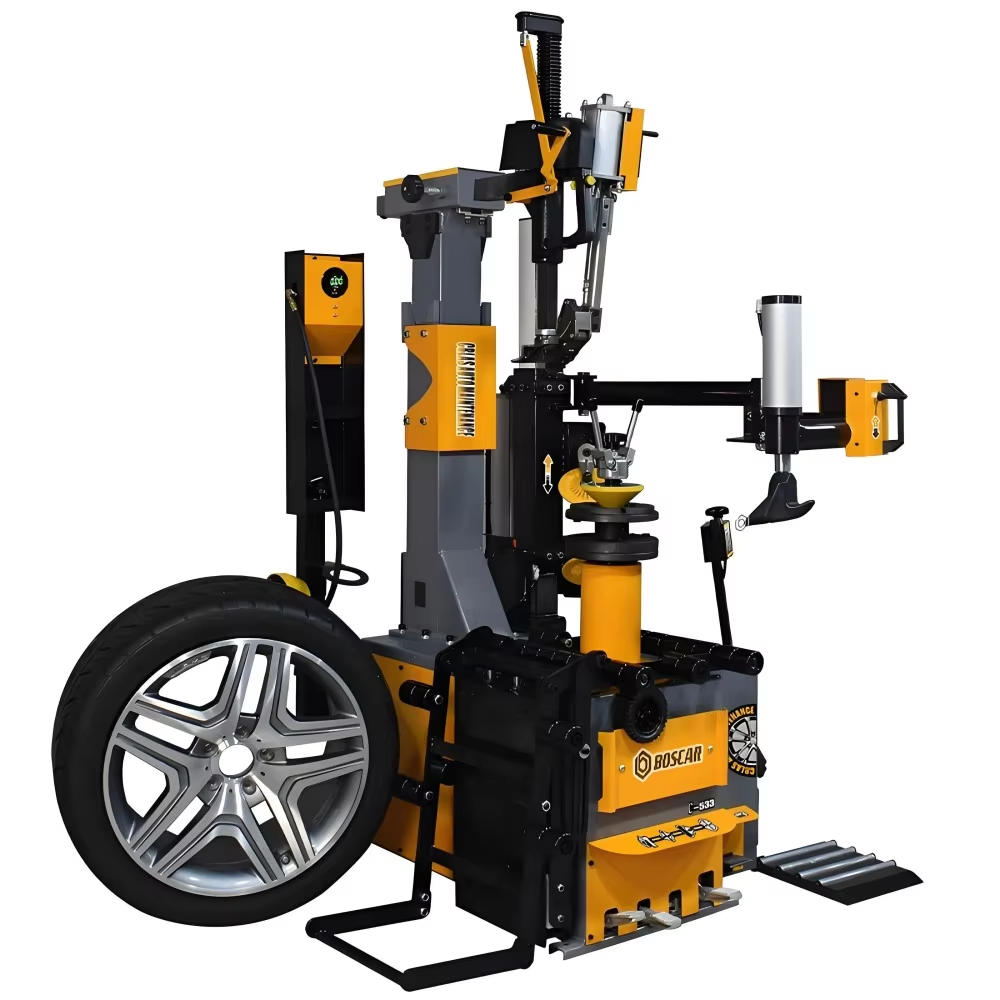

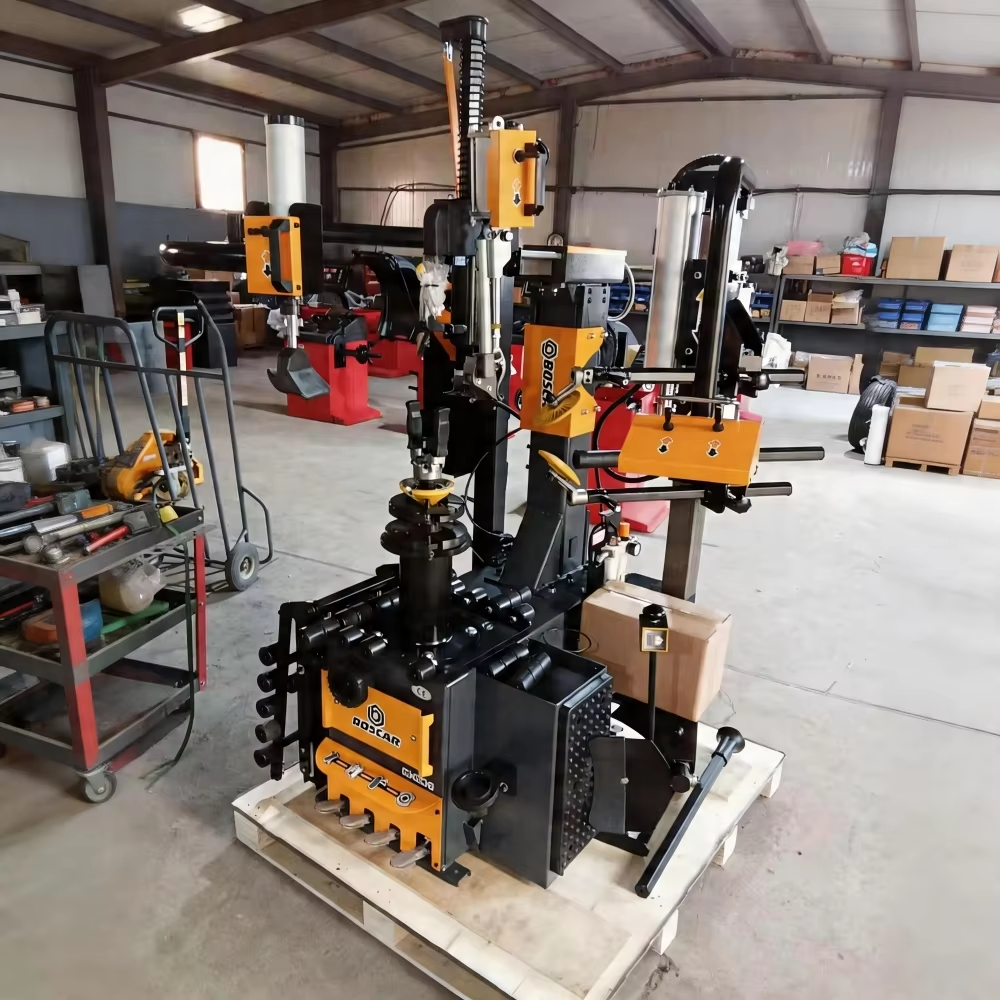

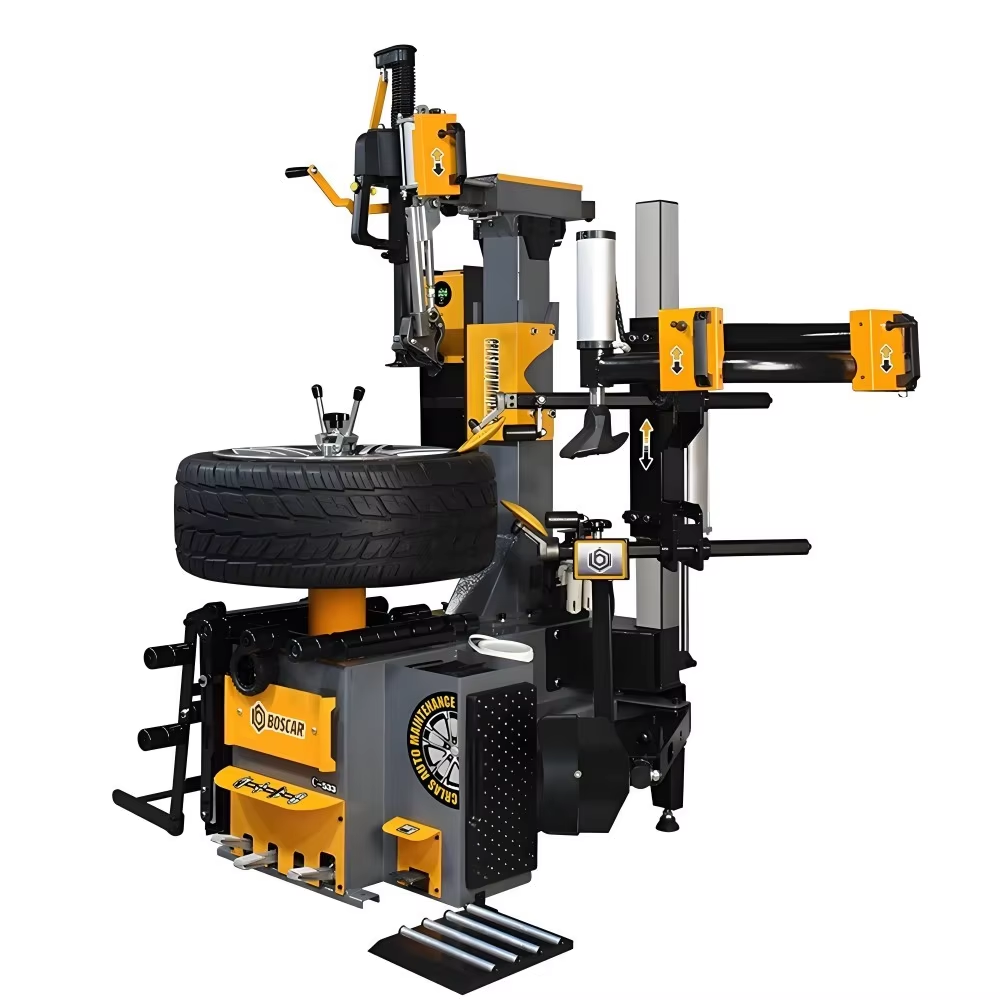

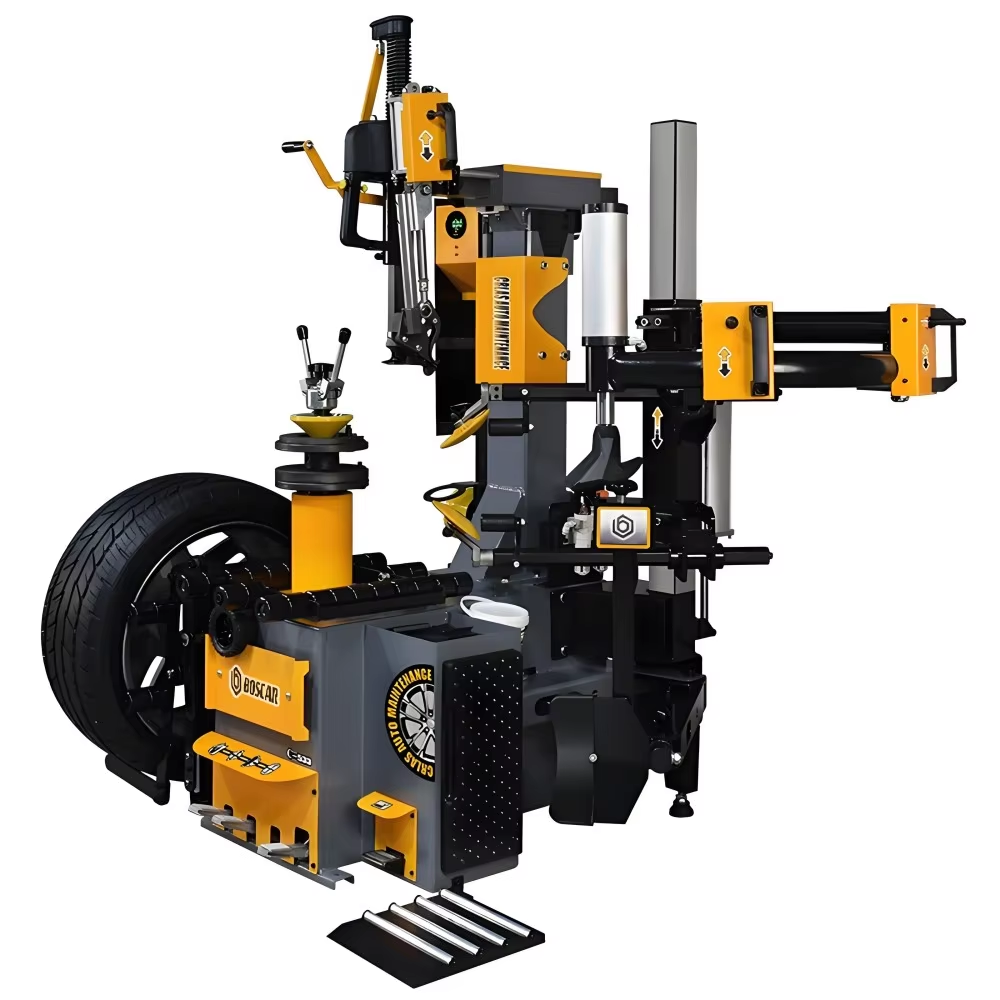

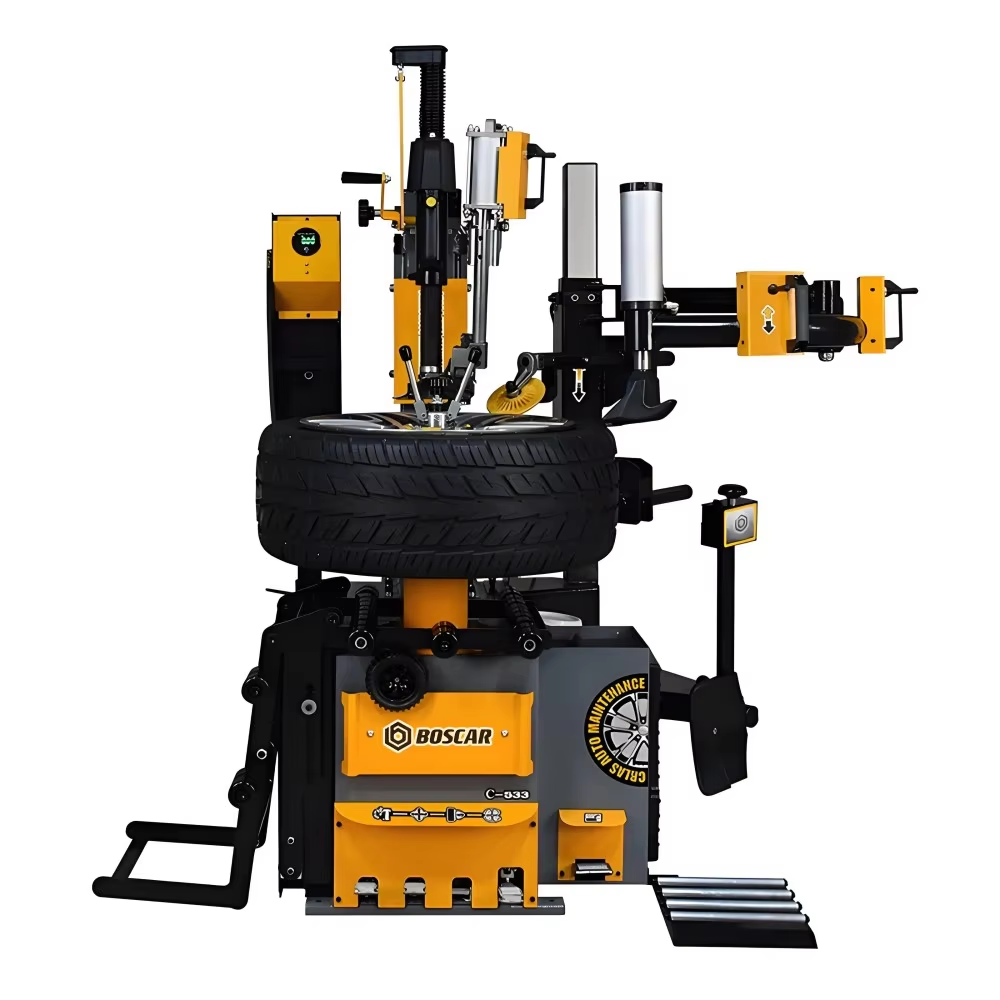

The BOSCAR BC-577 Fully Automatic Car Tire Changer is a heavy-duty, industrial-grade tire fitting machine engineered for high-volume tire shops, automotive service centers, and 4S dealerships. Equipped with an integrated pneumatic tire lifter and multi-function tire picker (assist arms), the BC-577 effortlessly handles oversized wheels, low-profile tires, and stiff run-flats from 12" to 30" with zero damage to alloy rims.

Key Features

• Integrated Tire Lifter & Tire Picker: Heavy-duty pneumatic tire lifter eliminates manual lifting of heavy wheels, while the multi-point tire picker helper arms easily seat, hold, and demount tough run-flat and low-profile tires.
• Pneumatic Up & Down Column: Powered vertical column (poles move up and down) allows rapid, flexible height adjustment and optimal tool head positioning across various wheel thicknesses.
• 12" to 30" Wide Clamping Range: Extra-wide clamping capability accommodates wheels from 12 inches up to 30 inches, covering passenger vehicles, SUVs, light commercial trucks, and custom sports wheels.
• Zero-Scratch Rim Protection: Specially engineered for delicate and high-end alloy rims; equipped with durable composite jaw protectors and demount head guards to guarantee no scratching or metal-on-metal contact.
• Industrial High-Torque Build: Reinforced 495 kg heavy-duty chassis and a reliable 1.1 kW motor provide rock-solid stability and smooth bi-directional rotation under rigorous shop conditions.

Technical Specifications

• Model: BC-577
• Rim Clamping Capacity: 12" – 30"
• Max. Wheel Diameter: 1,120 mm (44.1 in)
• Max. Wheel Width: 3" – 13.5" (330 mm)
• Motor Power: 1.1 kW
• Operating Voltage: 110V / 220V (50/60Hz)
• Required Air Pressure: 8 – 10 bar (116 – 145 psi)
• Machine Weight: 495 kg (1,091 lbs)
• Package Dimensions: 123 x 112 x 185 cm
• Shipping Volume: 2.55 CBM

What's Included & Warranty

• 1 x BOSCAR BC-577 Fully Automatic Tire Changer
• 1 x Integrated Pneumatic Tire Lifter System
• 1 x Multi-Function Tire Picker / Assist Arm Assembly
• 1 x Inflation Gauge with Air Hose
• 1 x Heavy-Duty Bead Lever / Pry Bar
• Full Set of Protective Plastic Covers for Jaws and Demount Head
• 1-Year Manufacturer Warranty with lifetime remote technical support
