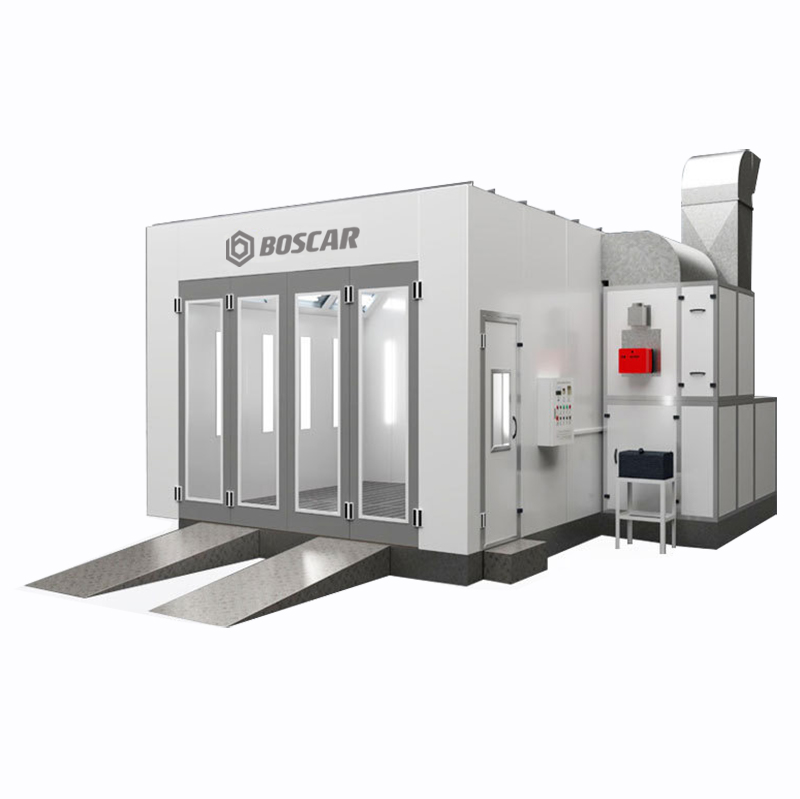

Luxury 8m Spray Booth external ramp Car Baking Oven with Electric/Diesel Heating

The BOSCAR SB 008 Luxury 8m Spray Booth is an industrial-grade automotive refinishing cabin designed for high-efficiency painting and baking of passenger cars, SUVs, and commercial vehicles. Engineered with a heavy-duty 7-ton floor load capacity and versatile multi-fuel heating capabilities, it provides a clean, temperature-controlled environment for professional paint shops.

Key Features

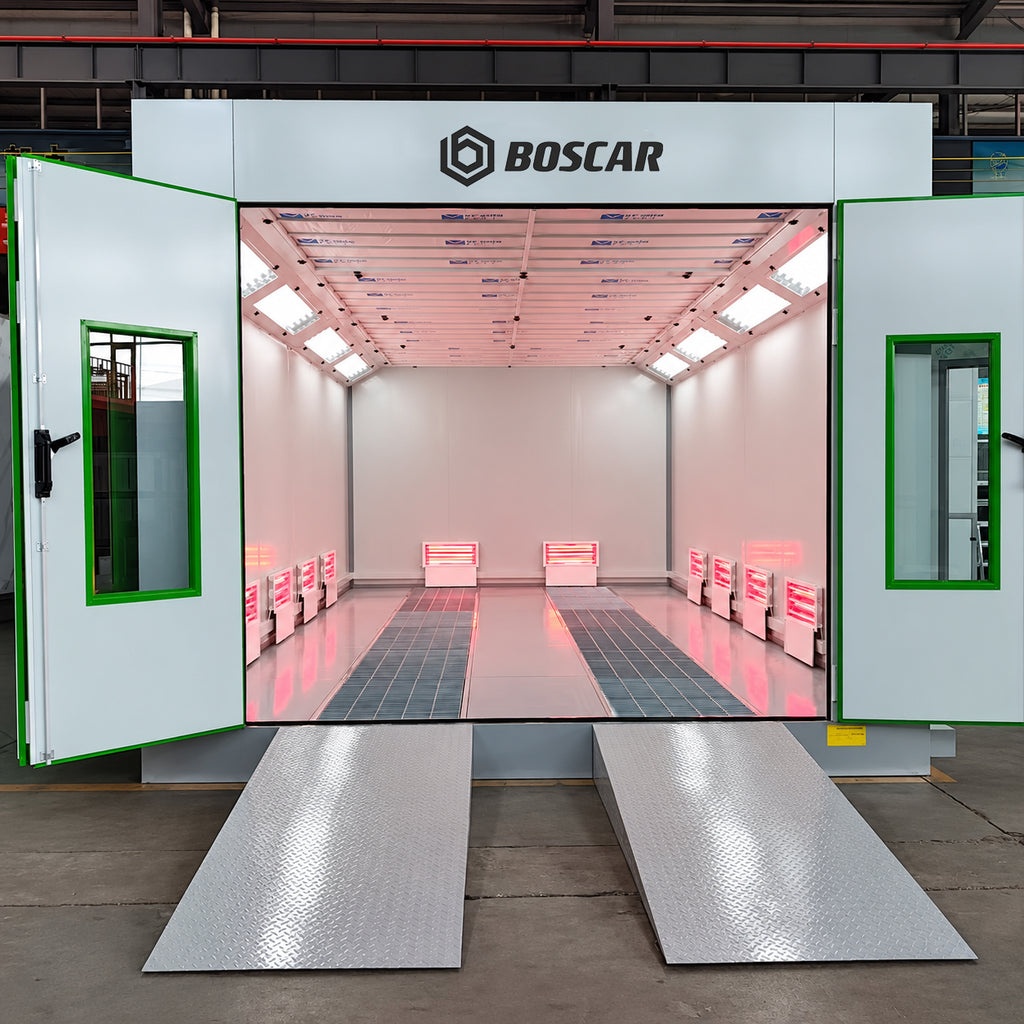

• Versatile Heating Capabilities: Features a high-efficiency 30 kW electric infrared heating system with 10 sets of lamps, alongside optional RIELLO G10 diesel or RIELLO FS10 gas burner configurations.
• Powerful Ventilation System: Equipped with two 5.5 kW inlet centrifugal fans and one 5.5 kW exhaust fan for rapid overspray evacuation and balanced airflow.
• Durable Flame-Resistant Cabin: Built with 50 mm flame-resistant wall panels faced with 0.45 mm galvanized sheet for superior thermal insulation and structural durability.
• High-Visibility LED Lighting: Comprehensive illumination featuring 30 roof LED units and 12 side LED units, delivering bright, shadow-free lighting for precision finishing.
• Heavy-Duty Reinforced Flooring: Features 3 rows of galvanized steel grating and 2 rows of powder-coated, rust-resistant walk plates with a robust 7-ton loading capacity.
• Convenient Access & Filtration: Four-leaf large tempered glass main door and an integrated side service door, complemented by roof and floor air filtration.
• Centralized Intelligent Controls: Microcomputer control cabinet for seamless management of temperature, cycle timers, spraying, heating, and lighting.

Technical Specifications

• Model: SB 008
• Internal Dimensions (L x W x H): 7900 x 4200 x 2800 mm (26 ft x 13.8 ft x 9.2 ft)
• External Dimensions (L x W x H): 8000 x 5400 x 3400 mm
• Heating System: 10 sets infrared lamps (30 kW); Optional RIELLO G10 Diesel Burner or RIELLO FS10 Gas Burner
• Power Supply / Voltage: 220V / 380V
• Ventilation System: 2 x 5.5 kW intake fans, 1 x 5.5 kW exhaust fan
• Lighting System: 30 pcs roof LED lamps, 12 pcs side LED lamps
• Cabin Construction: 50 mm flame-resistant wallboard with 0.45 mm galvanized sheet
• Floor Grid: 3 rows grating floor, 2 rows walk floor, powder-coated and rust-resistant
• Floor Loading Capacity: 7,000 kg (7 Tons)
• Doors: 4-leaf glass main door, 1 side service door
• Filtration: Roof and floor filters
• Control System: Temperature, time, spray, heating, and lighting control
• Available Colors: Blue, Red, Gray, White
• Total Weight & Volume: 3.5 Tons, 22 CBM
• Package Dimensions: Package 1: 4.5 x 1.1 x 2.2 m; Package 2: 4.5 x 1.1 x 2.2 m
• HS Code: 8419899090

Package & Included Systems

• SB 008 Cabin Wall Panels, 4-leaf glass main door, and 1 side service door
• Ventilation System: 2 sets 5.5 kW inlet fans and 1 set 5.5 kW outlet fan
• Heating Configuration: 10 sets infrared lamps (30 kW) / Optional burner integration
• LED Lighting System: 30 pcs roof LED units and 12 pcs side LED units
• Flooring System: 3 rows grills floor and 2 rows walk floor (powder-coated, 7T loading capacity)
• Filtration: Roof and floor filters
• Control System: Temperature, time, spray, heating, and lighting control cabinet

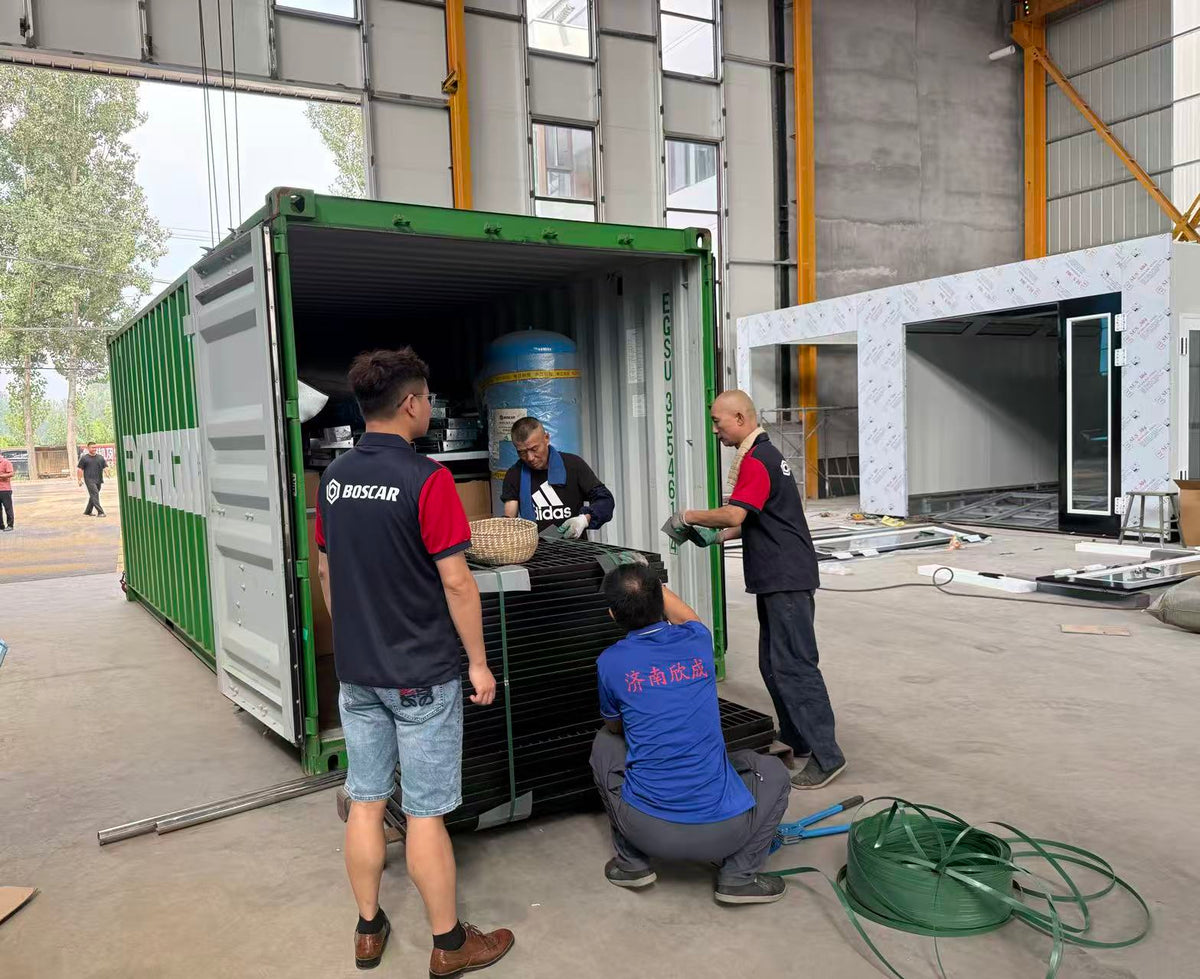

• Packaging: 2 packages (4.5 x 1.1 x 2.2 m each, 22 CBM, 3.5 Tons total)
