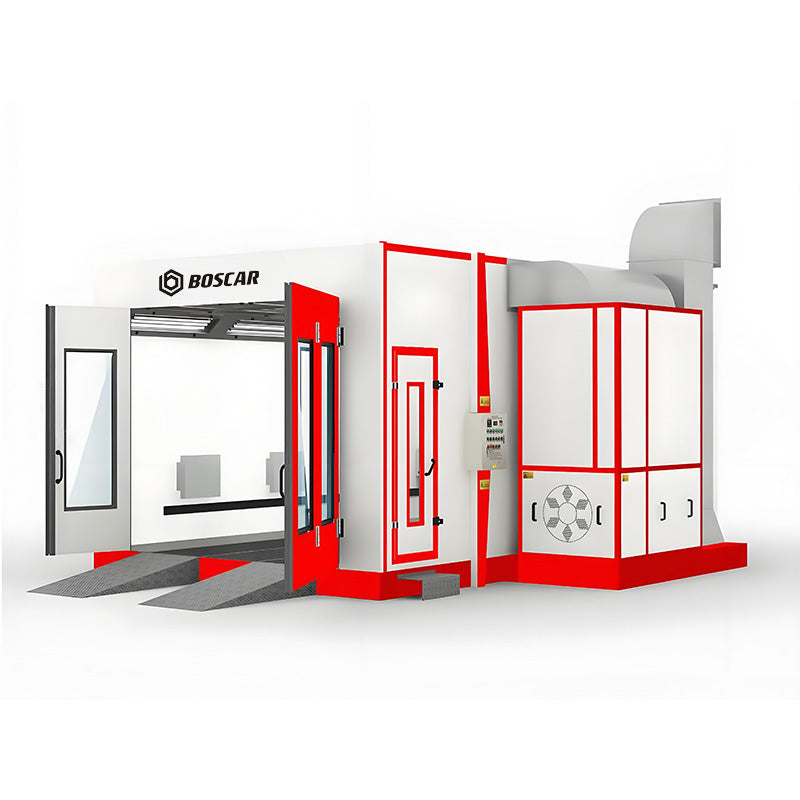

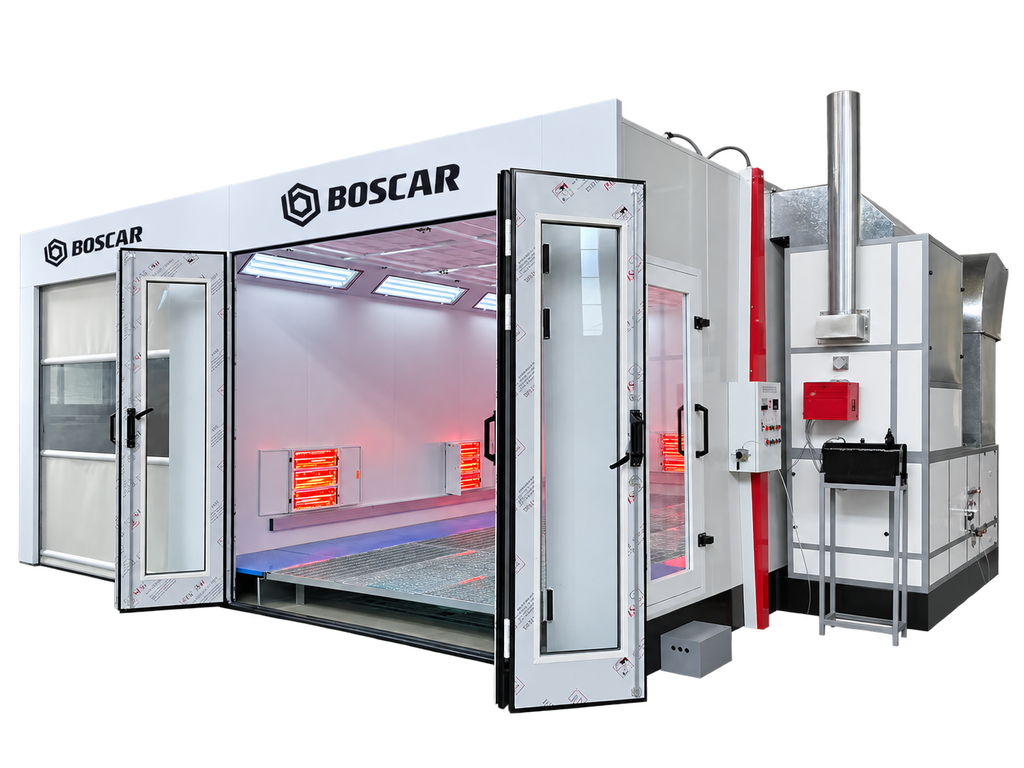

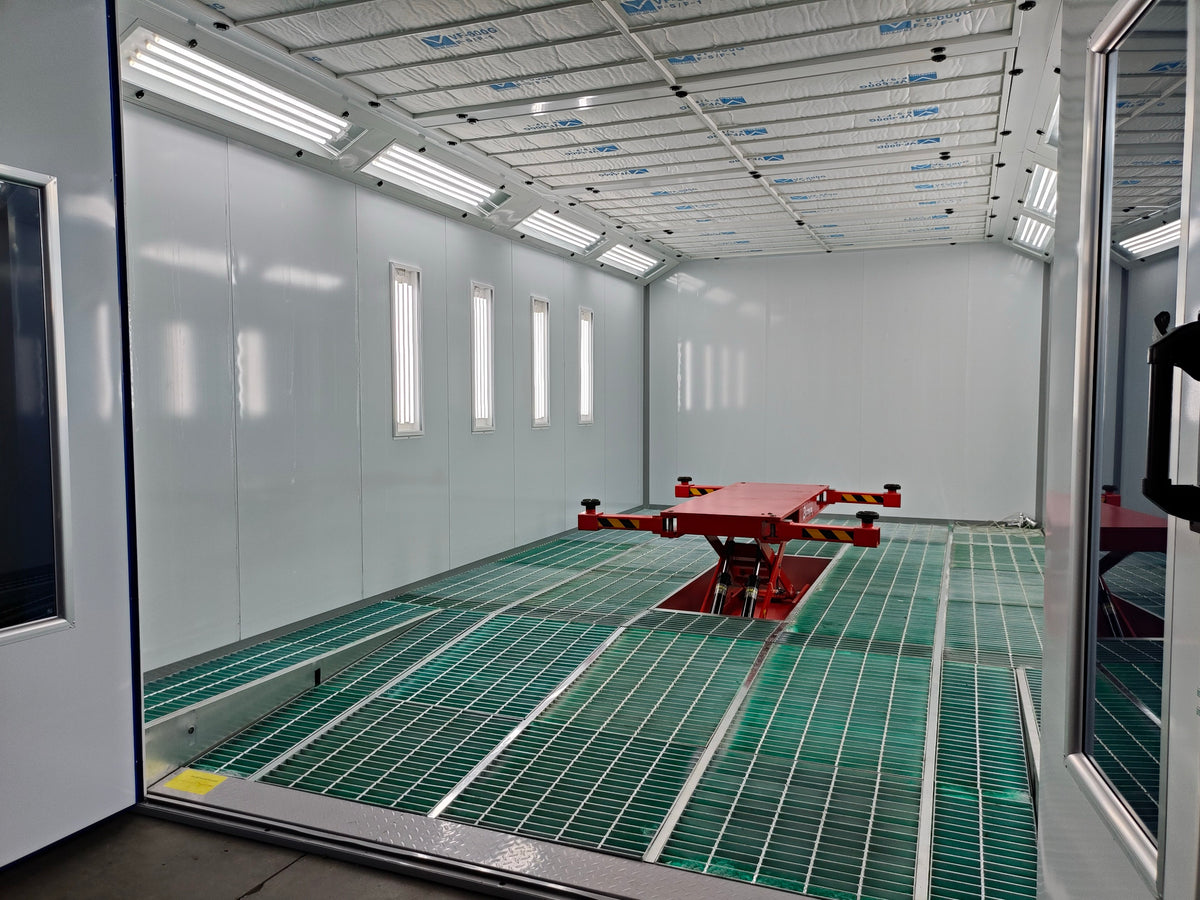

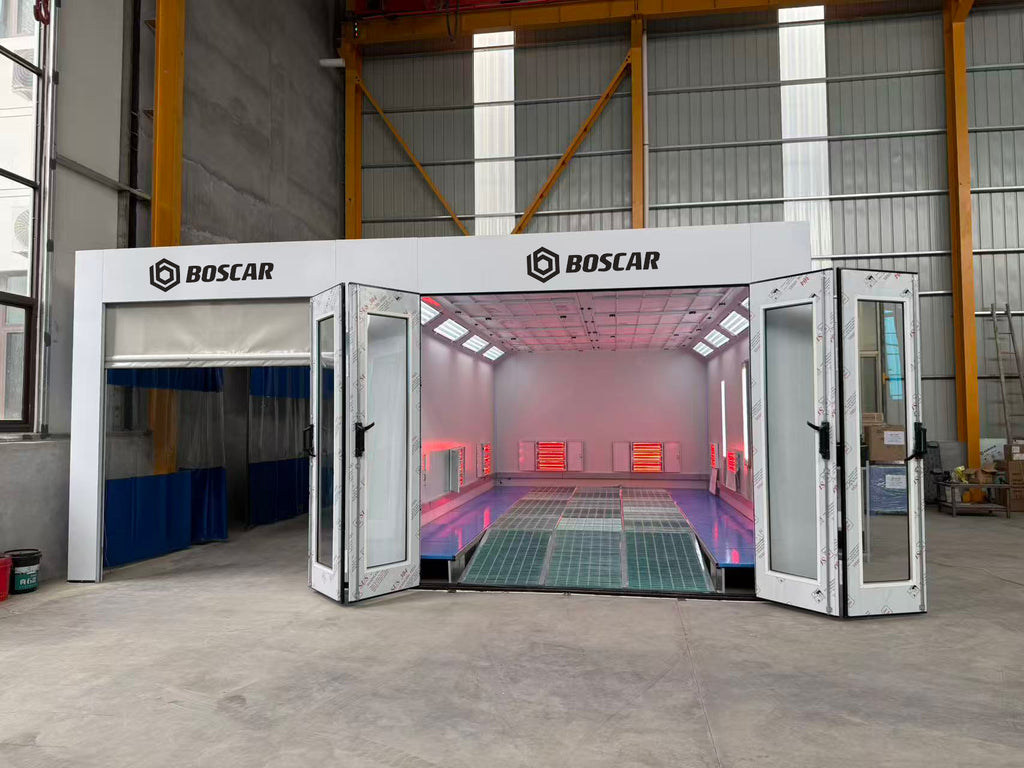

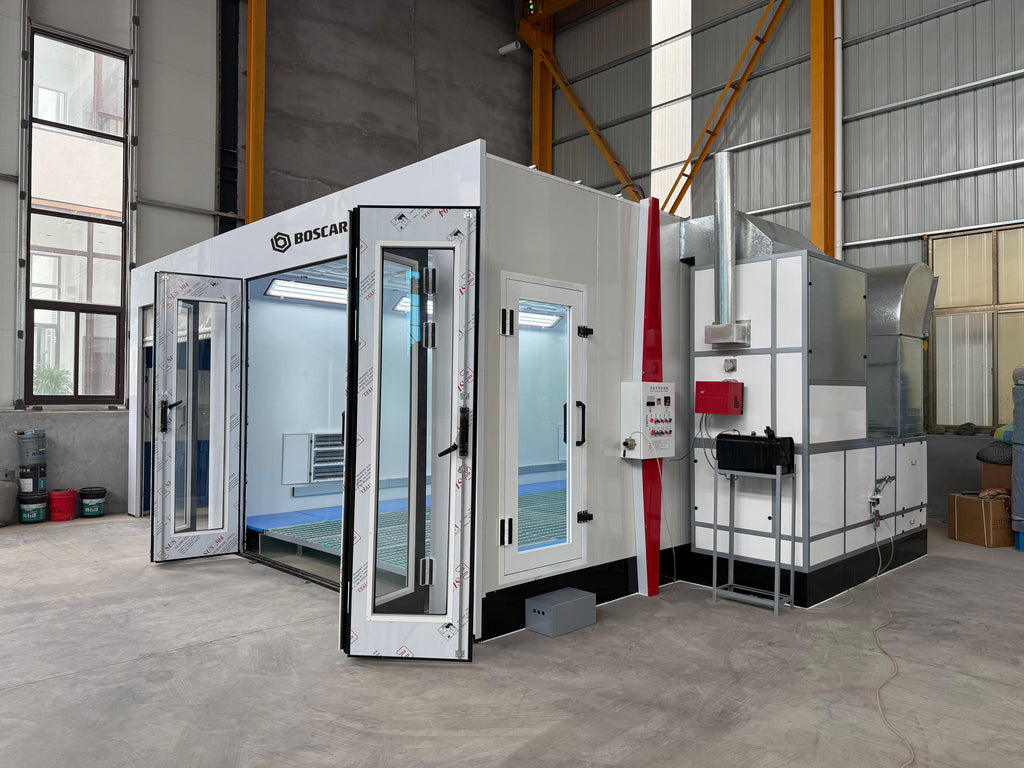

Luxury Outdoor Car Spray Booth with Pneumatic Lift and Baking Oven

Overview

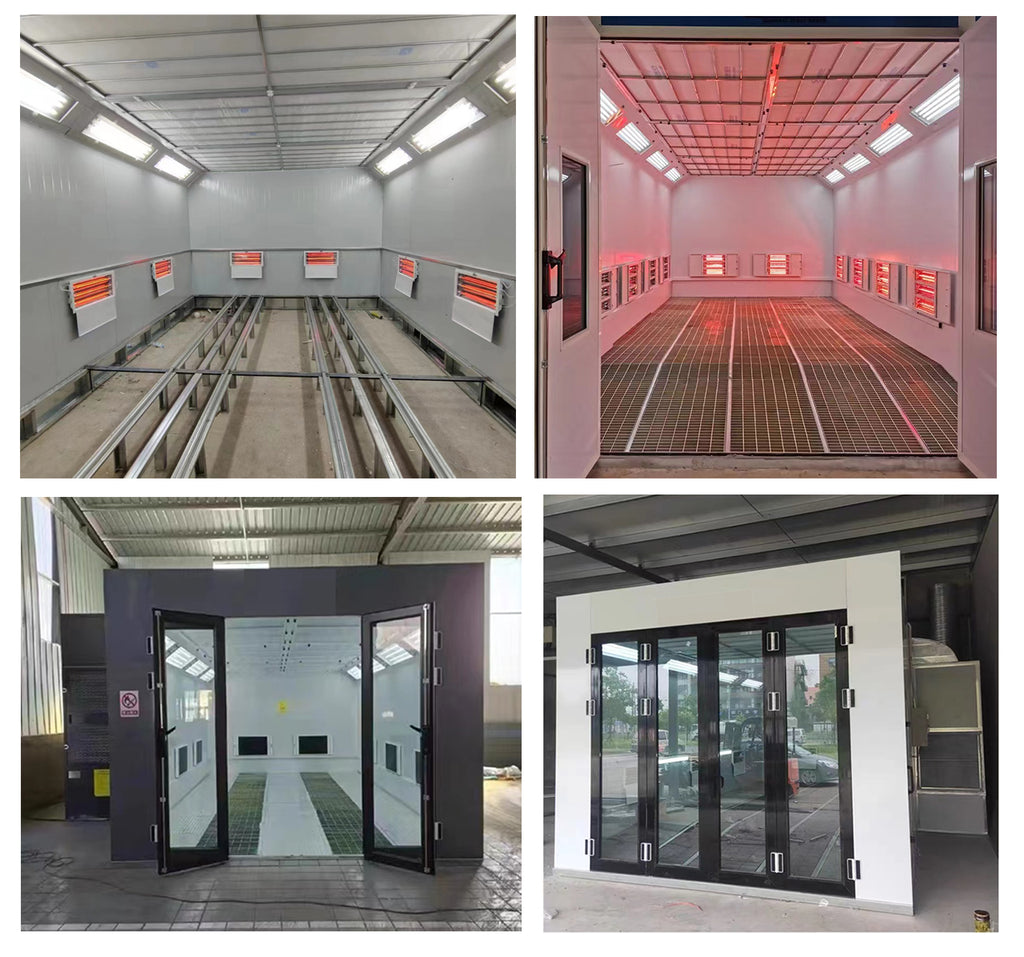

This luxury 9m spray booth is built for automotive painting and baking work, with a choice of electric, diesel heating and support for 220V, 380V, or 415V power. The booth is available in blue, red, gray, and white, and features a spacious interior, a rust-resistant floor structure, roof and floor filters, and a control system covering temperature, time, spray, heating, and lighting.

Key Features

• Electric, diesel heating options

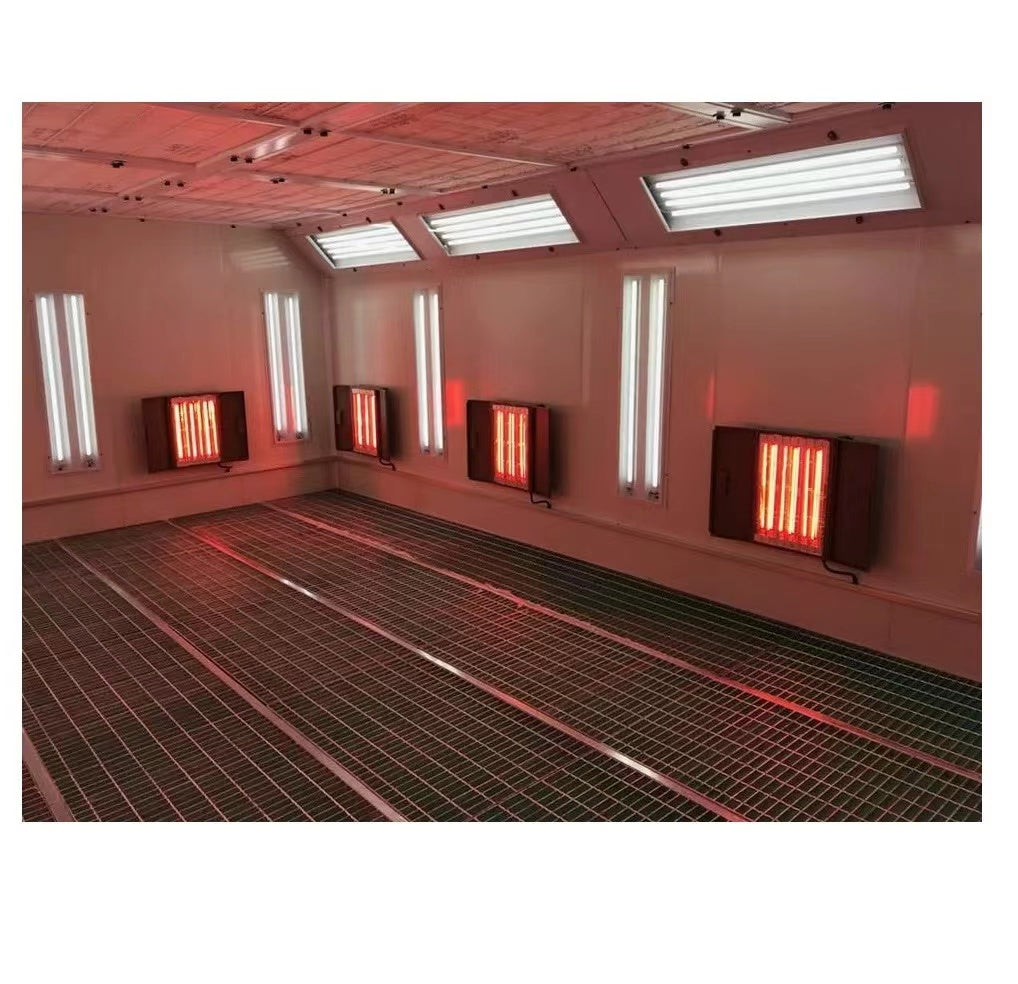

• 12 sets of infrared lamps provide 36 kW of electric heating
• 50 mm flame-resistant wallboard with 0.45 mm galvanized sheet
• Ventilation system with 2 sets of 4 kW inlet fans and 2 sets of 4 kW outlet fans

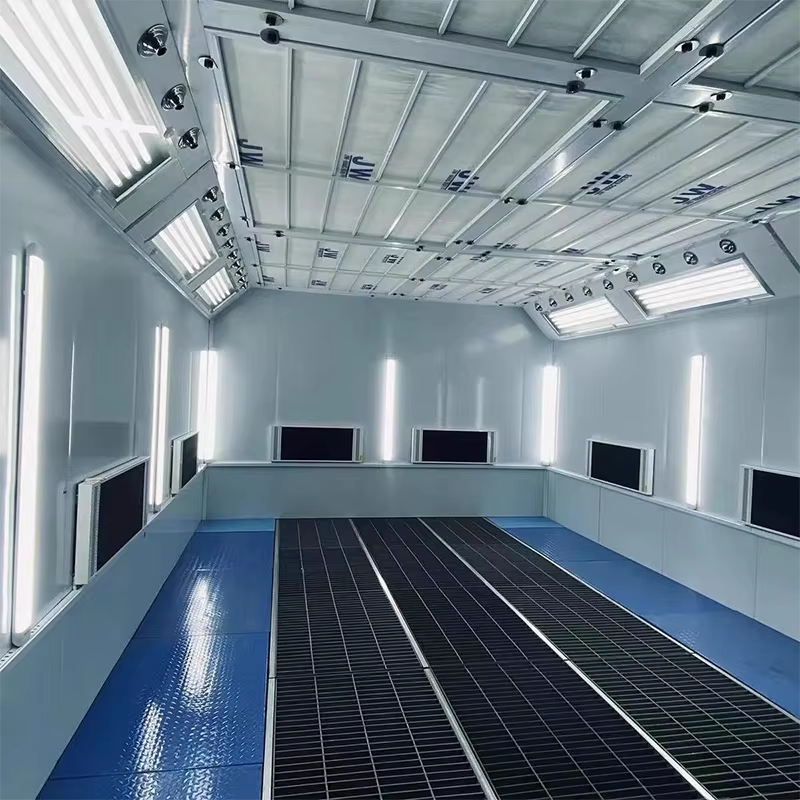

• LED lighting with 10 x 4 pcs top LED and 12 side LED
• Three rows of grills floor and 2 rows of walk floor, powder coated and rust-resistant

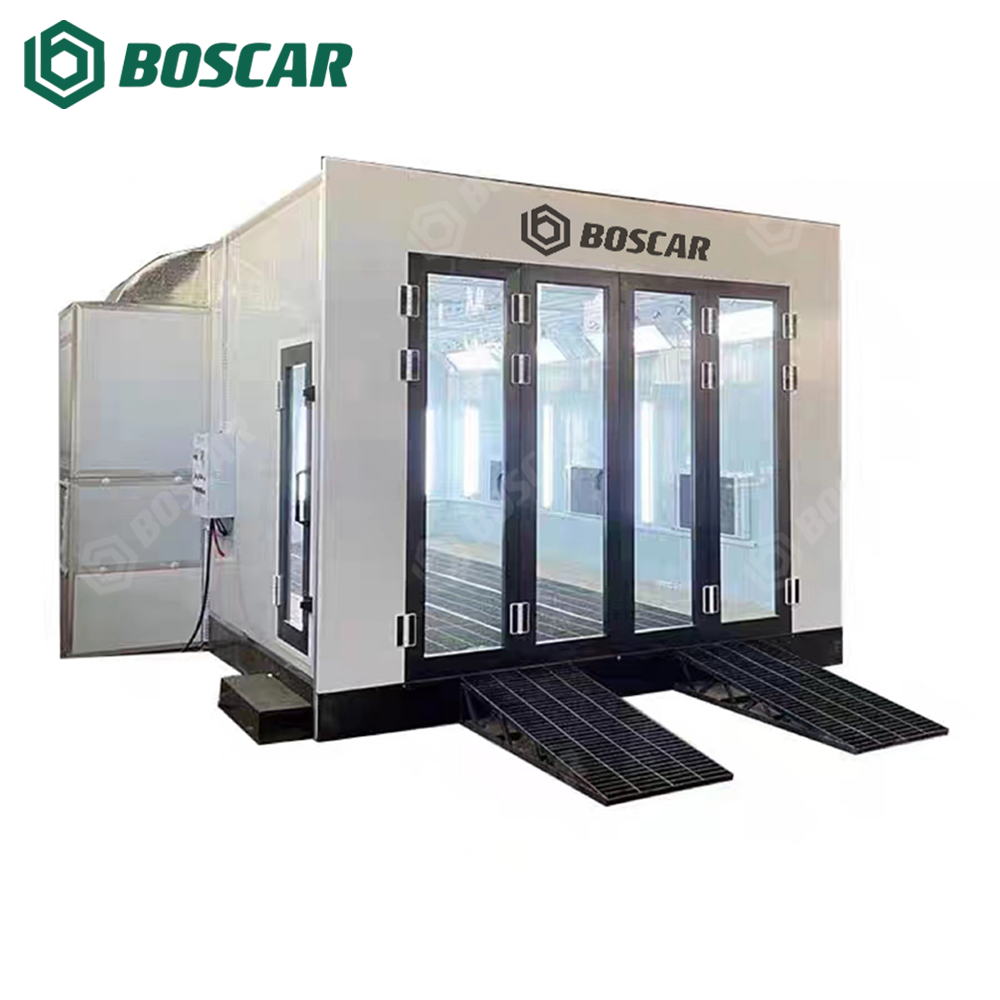

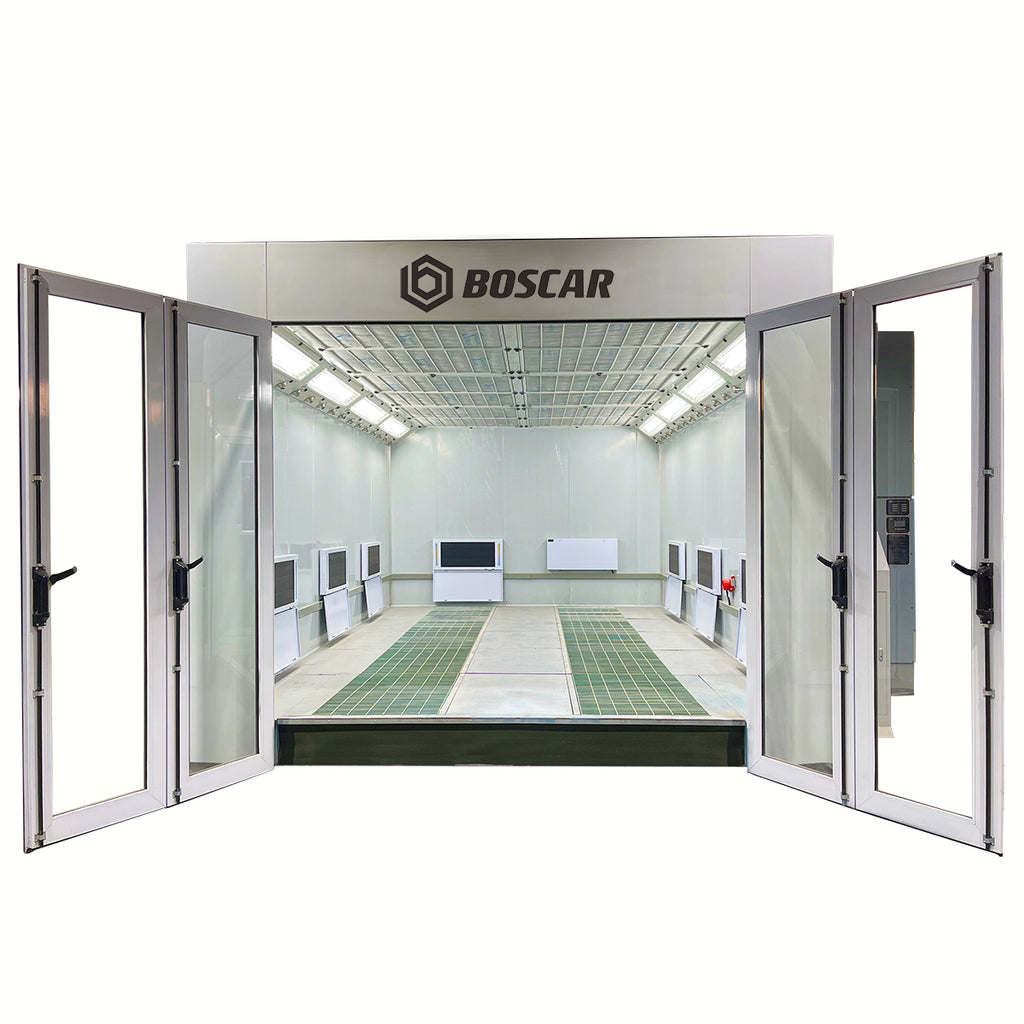

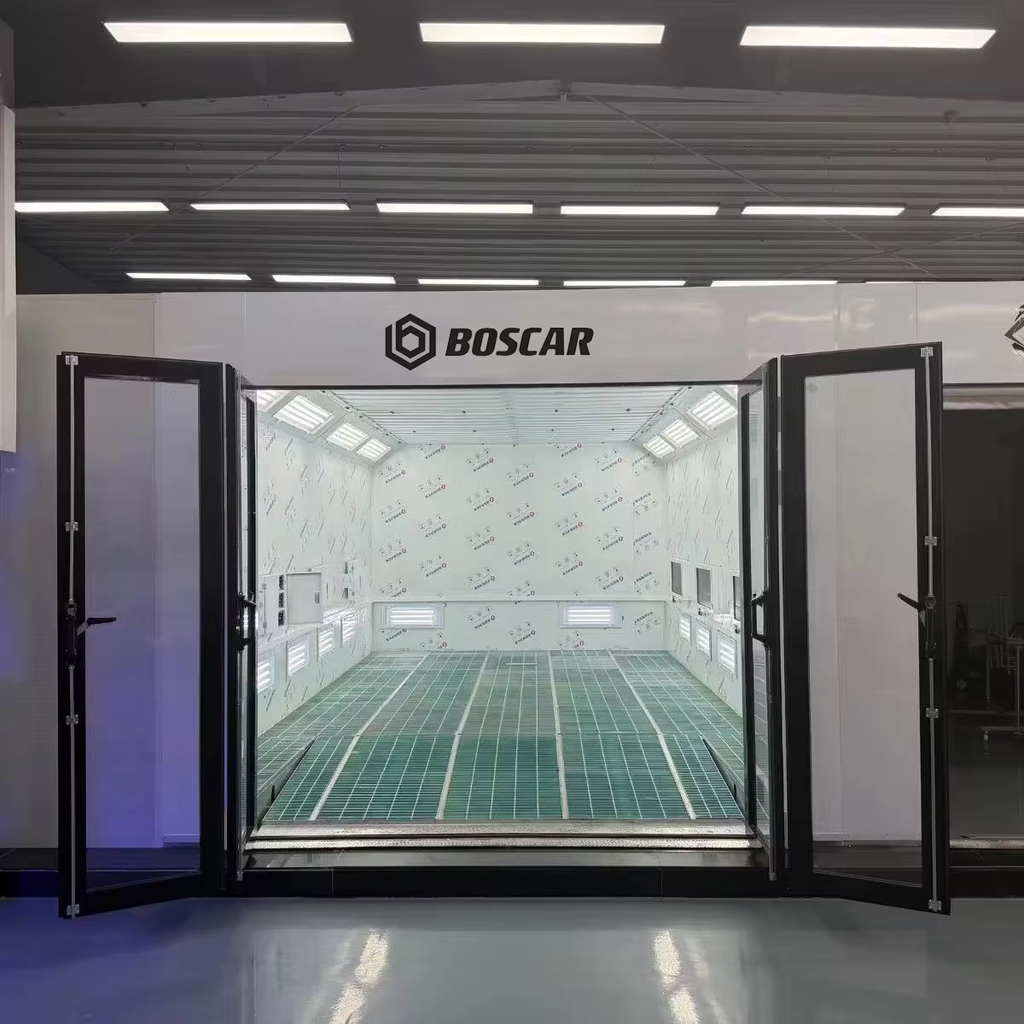

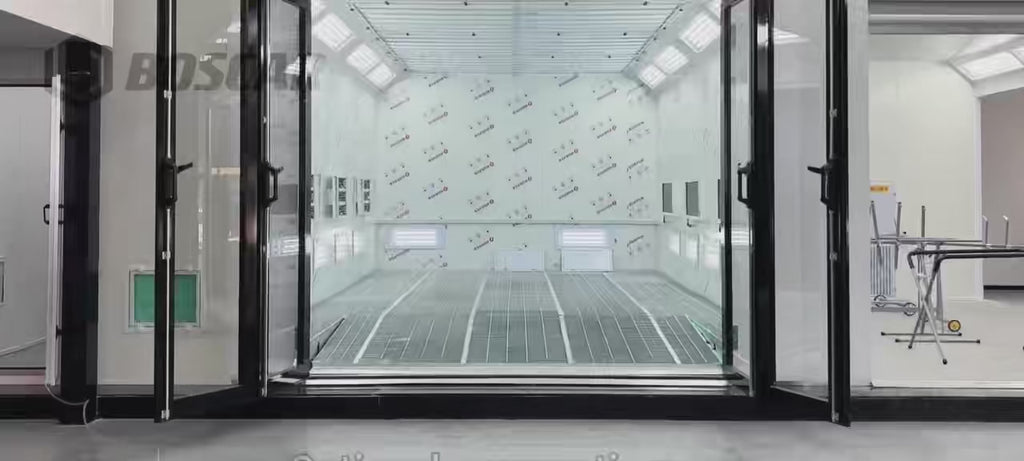

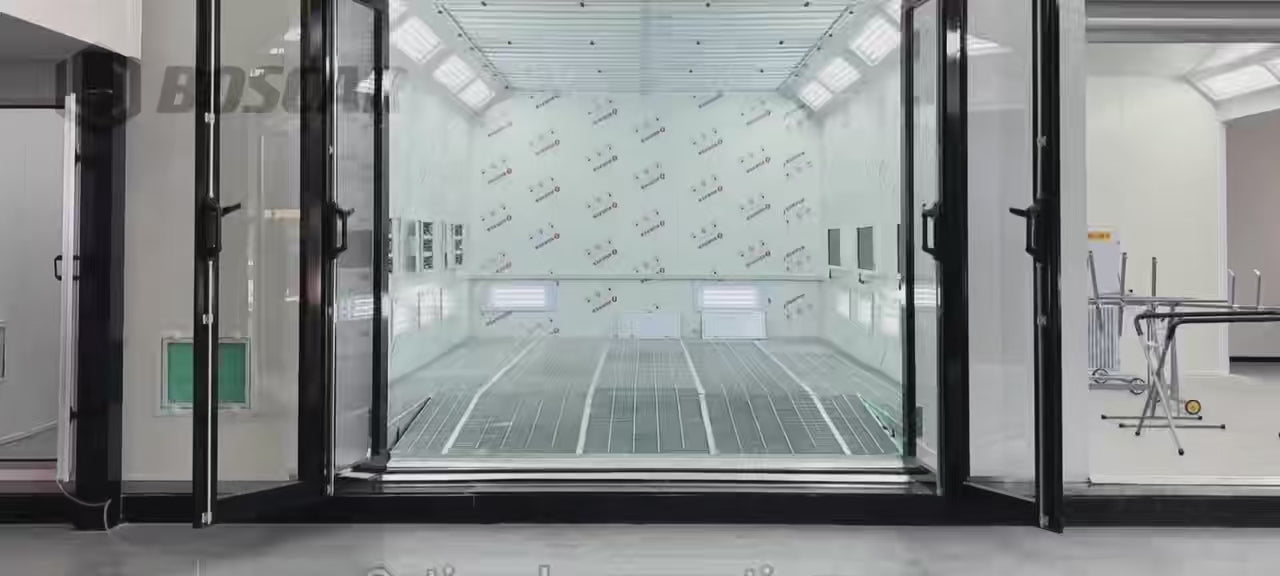

• Four big glass main doors and a side door
• Roof and floor filters
• Control system for temperature, time, spray, heating, and lighting

Technical Specifications

• Inner size: 8900 x 4300 x 2800 mm (L x W x H)
• Outer size: 9000 x 5700 x 3400 mm (L x W x H)
• Electric heating: 12 sets infrared lamp, 36 kW
• Diesel burner: RIELLO G20 (optional)
• Gas burner: RIELLO FS20 (optional)
• Voltage: 220V / 380V / 415V
• Color options: blue, red, gray, and white
• Loading capacity: 7 T
• Weight and volume: 4 T, 24 CBM


Package Details

• Package size, crate 1: 4.9 x 1.1 x 2.2 m
• Package size, crate 2: 4.9 x 1.1 x 2.2 m
